Stator knife left 762x80x23 Eco Line for Getecha GmbH

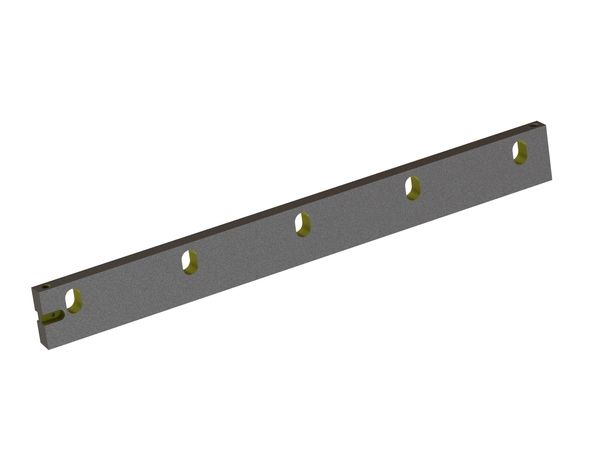

Stator knife left 762x80x23 Eco Line

5 long slots, edge 83°, 2xM12 threads, W-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMGT0762-W0L-E

Order now
delivery time on request
Detailed description

Stator knife SMGT0762-W0L-E by CUTMETALL for crushing machines by Getecha.



Compatibility with machines:

The stator knife is perfectly fitting for cutting millses and granulators from Getecha.



Cutting performance and durability:

The performance of the cutting tool depends largely on the version of the material and cutting geometry.

This alloyed tool steel is 5 % softer than the X-option and is therefore less susceptible to fractures. This makes this W-variation suitable for utilizations where impurities are present in the input. In return, however, this variant has a shorter tool life.

In this option, the products are hardened from the edge layer to the core. This means that the stator knife wears evenly over its lifespan.

It is imperative to avoid the welding on or hardfacing of spare parts of this variant, as the structure will otherwise be fundamentally impaired. Consequently, breakage and machine damage may occur.



Fastening in the machine:

The stator knife is mounted left on the cutting device. The other parts of the set can be found under the accessories.

When attaching the stator knife, please assure that it is only applied to knife holders or knife crossbars with an undamaged contact surface in order to prevent breakage.



General characteristics:

The dimensions of this component are 762mm in length, 80mm in width and 23mm in height.

Its cutting edge is inclined at 83°.

As the stator knife is part of our Eco Line, this product is a cost-efficient alternative to the Premium Line.

Technical specifications
suitable to manufacturer
Görgens Mahltechnik Guidetti Recycling Systems Getecha GmbH
production line
Eco Line = CUTMETALL foreign production
knife features
slightly increased wear / increased toughness
article group
stator knife | bed knife | static knife
length
762.00
width
80.00
height
23.00
material | hardness
Cr12MoV | 54-56 HRC
