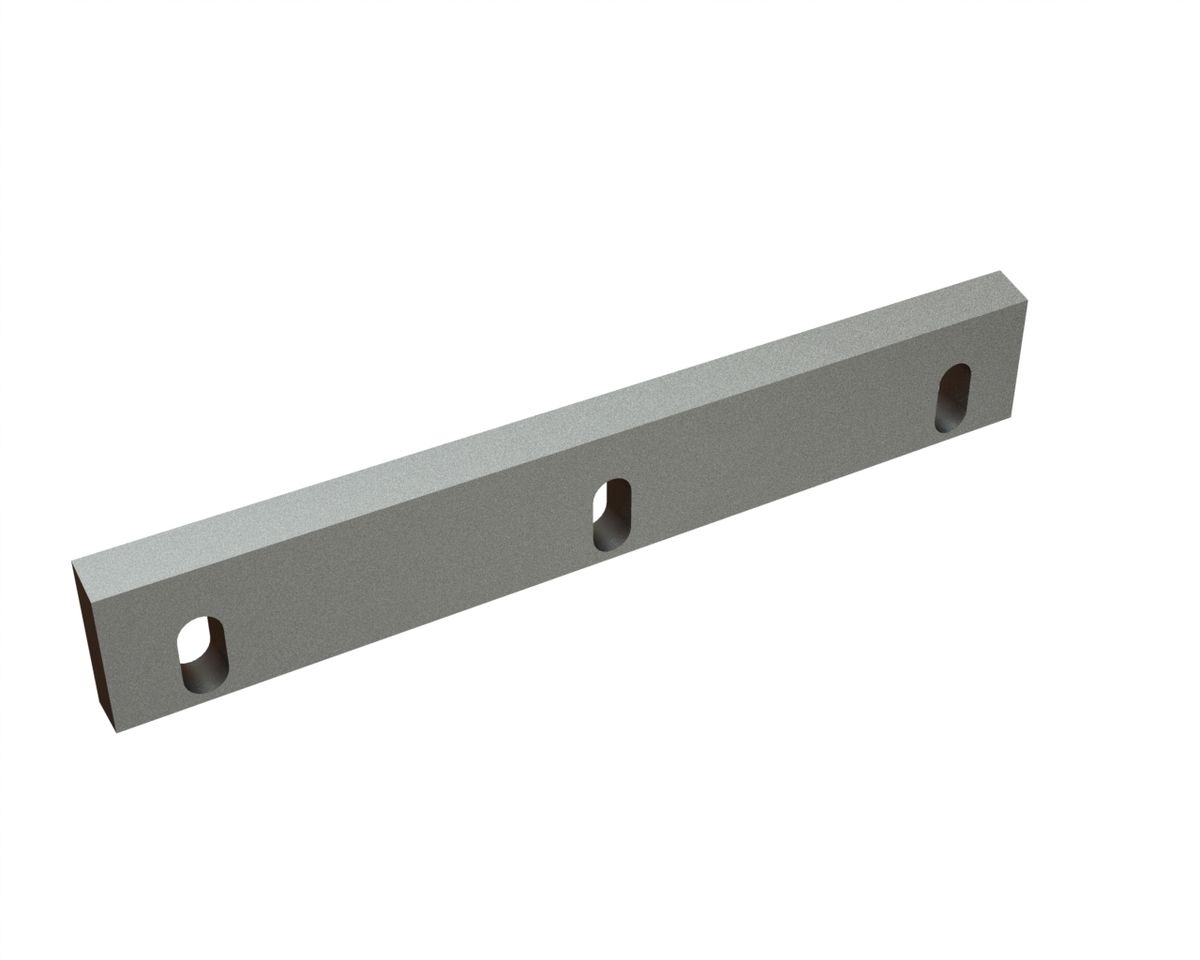

Stator knife 423x67x20 Premium Line for Herbold Meckesheim GmbH Herbold SML

Stator knife 423x67x20 Premium Line

3 long slots, edge 75°, 2xM8 threads, X-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SMHD0423-X00

Order now
delivery time on request
Detailed description

Stator knife SMHD0423-X00 from CUTMETALL for recycling machines from Herbold Meckesheim



Compatibility with machines:

This stator knife is fitting for crushing machines of the Herbold SML model range from the company Herbold Meckesheim.



Cutting performance and durability:

The efficiency of this product depends largely on the variant of the material and cutting geometry.

The stator knife is made of tool steel and is thus assigned to our X-option, which is the standard version in most break down applications.

Here we offer you a perfect combination of resistance to wear and tear and toughness at the same time.

Due to the through-hardening process, there is a persistent hardness from the edge layer to the core. This ensures uniform wear over the lifetime of the stator knife.

However, this option must not be armoured or welded on, as it negatively influences the structure of the products. Consequently, fractures and machine damage are possible.



Fastening in the machine:

When attaching, please also assure that the support of the knives is in an intact condition, as otherwise breakage may occur.



General characteristics:

This item measures 423mm in length, 67mm in width and 20mm in height.

Its cutting edge is inclined at 75°.

As this stator knife belongs to the Premium Line, the spare parts shown is exclusively made in German production.



Field of application:

Additionally to a broad variety of application areas, the stator knife can be used for the following materials:

  • Foils
  • Plastic
  • Canisters
  • Barrels
  • Bumpers
  • Thinwanned tubes
  • Injection molding waste
  • Profiles
  • Stancing grids
  • Foams
  • Deep-drawn parts



In this comprehensive range of applications, we will be glad to support you in choosing the exact spare part for your individual needs. Do not hesitate to contact us! The CUTMETALL team will determine your particular needs in a personal meeting to choose the optimal cutting tool.

Technical specifications
suitable to manufacturer
Herbold Meckesheim GmbH
suitable to machine
Herbold SML Herbold SML 35/42
production line
Premium Line = knives Made in Germany
knife features
medium wear / medium toughness
article group
stator knife | bed knife | static knife
length
423.00
width
67.00
height
20.00
weight in kg
3.98
material | hardness
AISI D2 | DIN 1.2379 | 57-59 HRC
