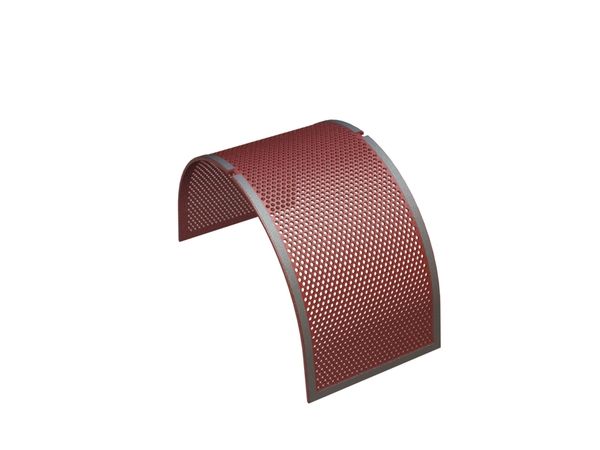

Screen plate 400 wide, sheet thickness t=8+2 for Eldan HG

Screen plate 400 wide, sheet thickness t=8+2

hole Ø10, bar width 4, Hardox
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
SYED0400-AR101

Order now
delivery time on request
Detailed description

Screen plate SYED0400-AR101 from CUTMETALL for recycling machines from Eldan Recycling



Compatibility with machines:

The screen plate is a perfect fit for the Eldan HG series from the manufacturer Eldan Recycling.



Performance and screening behaviour:

The performance of the screen plate depends predominantly on both the variant and the geometry.

This resistant steel of the A-variation promises a long service life. As it is less sensitive to wear due to the extra hardness, it is optimal for using it in demanding operational scenarios.

This screen plate processes the input material with circular holes. Distributed over the surface, these consistently measure a diameter of 10mm each. The spaces between the perforations have a width of 4mm.



General characteristics:

To secure that the small perforations can be worked into the material accordingly, this screen plate has a sheet thickness of 8mm. To restore the original sheet thickness and to ensure that it can be installed, the screen plate is additionally provided with a 2mm thick lining on the contact surfaces. Due to this procedure, the safety of our products and the necessary flexibility in production are guaranteed. Additionally, the screen plate is 400mm wide.



Alternative articles:

This item is only available in one version so far. Nevertheless, you are welcome to get in touch now! After we have investigated together wether it is possible to produce the screen plate in a desired material option, we will have the ideal spare part made for your explicit needs.

Replacement and Wear Parts for Eldan Recycling – Excellence from CUTMETALL

Discover at CUTMETALL, your specialist for high-quality replacement and wear parts, a wide range of customized components for shredders, granulators, and raspers of the renowned brand Eldan Recycling. Our products, developed to optimize your Eldan Recycling machines, ensure not only efficiency but also the longevity of your equipment. We offer the right solution for every model – if you cannot find your specific model, simply contact us. Our experienced team will provide you with immediate support.

Why Choose CUTMETALL for Your Eldan Equipment?

The CUTMETALL own brands stand for quality and precision. Our replacement and wear parts are the result of years of experience and continuous product development, to ensure the best fit and highest performance for your Eldan Recycling machines:

  • Eldan Super Chopper (SC)
  • Eldan Multi Purpose Rasper (MPR)
  • Eldan Heavy Granulator (HG)
  • Eldan Heavy Rasper (HR)
  • Eldan Fine Granulator (FG)
  • Eldan Heavy Pre Granulator (HPG)

Our experts are happy to advise you on extending the service life and durability of your machines, and help you find the optimal solution for your requirements.

Benefits with CUTMETALL

More than just replacement: CUTMETALL products not only enhance the performance of your machines but also contribute to significant cost reductions. By using our process-optimized and durable components, you increase the economic efficiency and efficiency of your recycling processes.

As your partner in the shredding and recycling industry, CUTMETALL stands for innovative solutions specifically tailored to your needs. Discover our range now and learn how we can help you improve the performance and longevity of your Eldan Recycling machines.

Technical specifications
suitable to manufacturer
Eldan Recycling A/S
suitable to machine
Eldan HG Eldan HG 209
production line
Hardox
article group
Screen plates
length
400.00
width
1314.50
height
8.00
weight in kg
21.00
screen perforation - performance
round perforation
