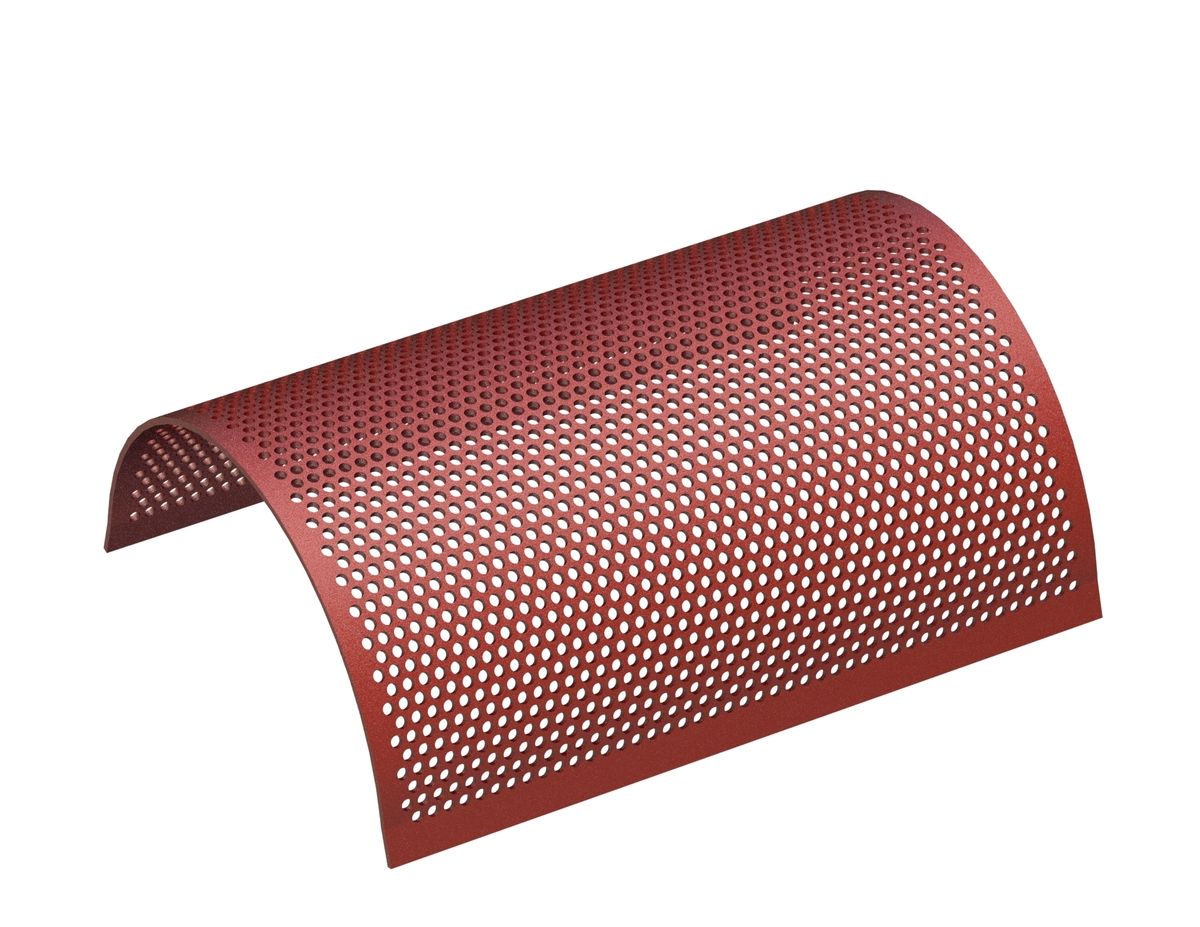

Screen plate 1120 wide, sheet thickness t=10

Screen plate SYTH1120-AR017 from CUTMETALL for recycling machines from Mewa/Ehehalt/Andritz Mewa/THM

Compatibility with machines:

Performance and screening behaviour:

The efficiency of the screen plate depends primarily on both the version and the geometry.

This A-variation is an ideal choice in terms of longevity. It can withstand high wear conditions due to its additional hardness and abrasion insensitivity. It is made out of resistant Hardox steel.

To enable the screen plate to screen the input properly, this screen plate has round perforations. In addition, the diameter of each hole is 17mm and the margin widths between the holes are 9mm each.

General Characteristics:

In order to withstand the above-mentioned application conditions, the screen plate was produced with a sheet thickness of 10mm and a width of exactly 1120mm.

Alternative articles:

In this form, we currently only have one option of the presented spare part in our assortment. Nevertheless, if you are interested, we would be glad to check your requirements and the possibility of using a different material in manufacturing. Please contact us now!
