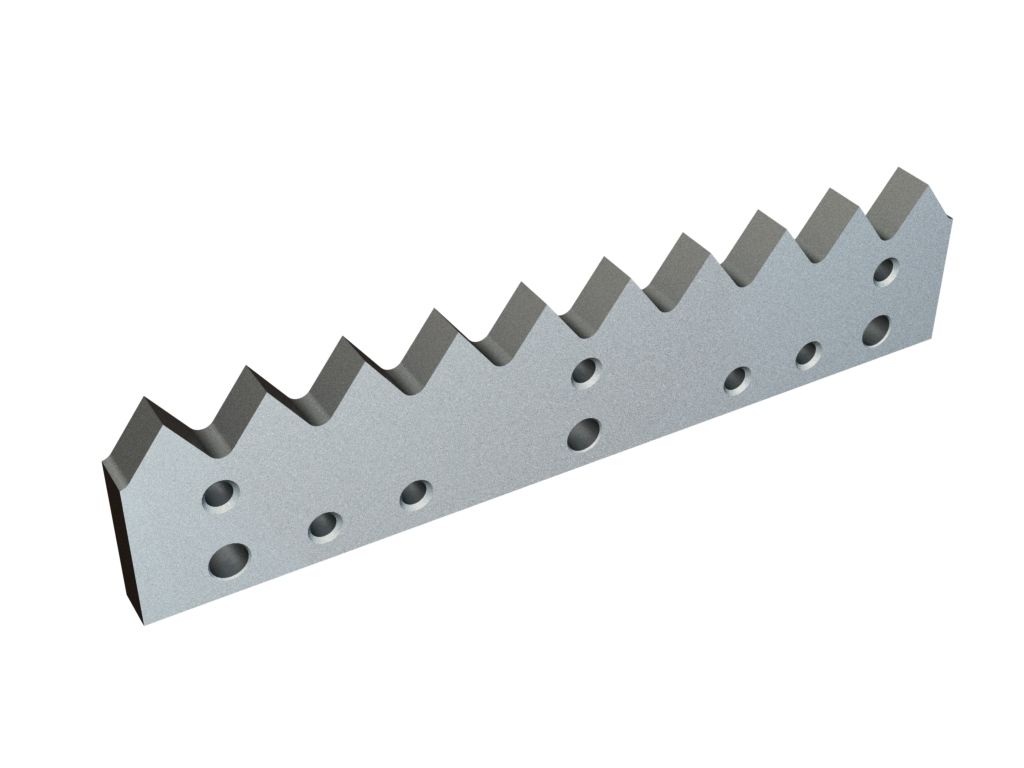

Counter knife middle 491x110x25 Premium Line

version 37, W9-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMUT0491-901M

Order now
delivery time on request
Detailed description

Counter knife GMUT0491-901M by CUTMETALL for recycling machines by Untha.



Compatibility with machines:

This item is excellently fitting for crushers, shredders, pre-shredders, and post-shredders from Untha.



Cutting performance and durability:

This product can be customised to the break down application, depending on the particular materials and varying cutting geometry.

By contrast, the W9-variation wears more quickly than the X-version due to its lower hardness. Also the insensitivity to impurities and the high toughness of the W9-variant is a notable feature compared to the X-option.

Products of this variant are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is even in relation to its tool life.

Hardfacing or welding on this option should be avoided, as the structure will otherwise be acutely weakened. This can lead to breakages and machine damage.



Fastening in the machine:

The counter knife is mounted centered on the cutting device. The other parts of this set can be found under the accessories.

The counter knife can be combined with knives and cutters with a length and width of 37mm. Due to the wide range of shredder models, further configuration variants are possible.

When installing the counter knife, please assure that it is only applied to knife holders or knife crossbars with a flat contact surface in order to prevent breakage.



General characteristics:

The dimensions of this component are 491mm in length, 110mm in width and 25mm in height.

As part of the Premium Line, this counter knife is of German production.

Technical specifications
suitable to manufacturer
Untha
suitable to machine
Untha MR Untha MR 1500
production line
Premium Line = knives Made in Germany
knife features
higher wear / higher toughness
article group
counter knife | shredder bed knife
length
491.00
width
110.00
height
25.00
weight in kg
8.60
material | hardness
AISI H13 | DIN 1.2344 | 54-56 HRC
