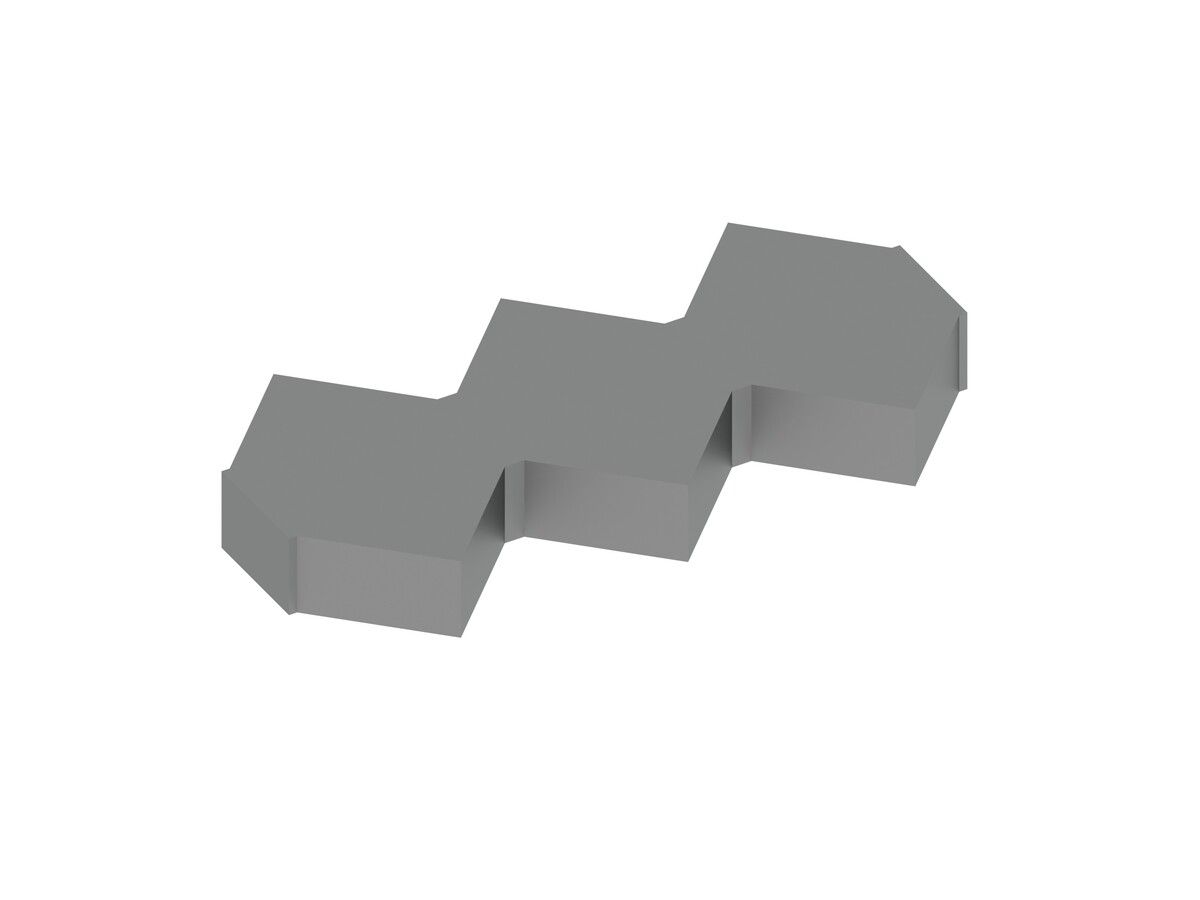

Counter knife middle 418x200x50 Eco Line

version 110, W9-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMUT0418-90M-E

Order now
Currently 2 in stock
Detailed description

Counter knife GMUT0418-90M-E from CUTMETALL for crushing machines from Untha



Compatibility with machines:

This item is excellently suitable for crushers, shredders, pre-shredders, and post-shredders from Untha.



Cutting performance and durability:

The efficiency of this spare part depends primarily on the version of the material and cutting geometry.

By contrast, the W9-variant wears faster than the X-variation due to its lower hardness. Also the resistance to impurities and the high toughness of the W9-option is a remarkable feature compared to the X-variation.

In this variant, the spare parts are hardened from the edge layer to the core. This means that the counter knife wears evenly over its lifetime.

It is imperative to avoid the welding on or hardfacing of products of this version, as the structure will otherwise be severely weakened. Consequently, breakage and machine damage may occur.



Fastening in the machine:

The counter knife is mounted centered on the cutting device. The other parts of this set can be found under the accessories.

The component is ideal for knives and also cutting crowns with the length and width of 110mm. With regard to the diverse range of models, other configuration options can be realised.

When fitting the counter knife, please assure that it is only attached to knife holders or knife crossbars with a flat contact surface, as otherwise breakage may occur.



General characteristics:

This counter knife is 415mm long, 199.5mm wide and 50mm high.

This Eco Line counter knife is reliable, can get the job done and is also price-competitive in comparison to our Premium Line.

Technical specifications
suitable to manufacturer
Untha
suitable to machine
Untha XR Untha XR 2000 Untha XR 3000
production line
Eco Line = CUTMETALL foreign production
knife features
higher wear / higher toughness
article group
counter knife | shredder bed knife
length
418.00
width
200.00
height
50.00
weight in kg
21.32
material | hardness
AISI H13 | DIN 1.2344 | 54-56 HRC
