Counter knife 356x200x39 Premium Line

version 145, W8-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number
GMMW0356-8G2

Order now
delivery time on request
Detailed description

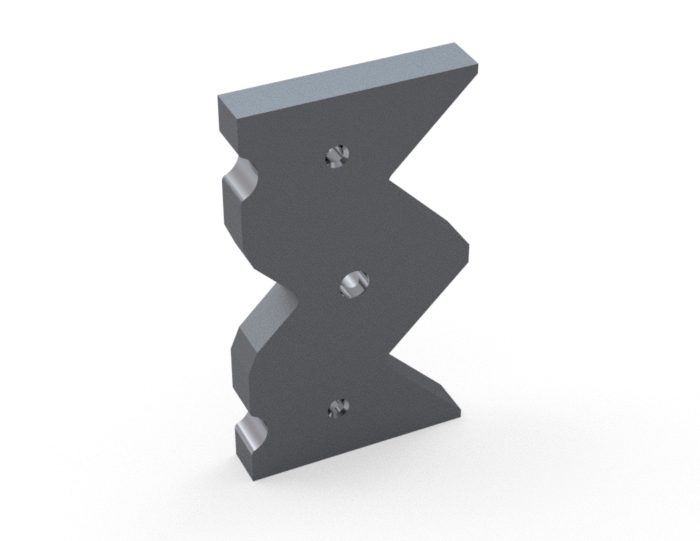

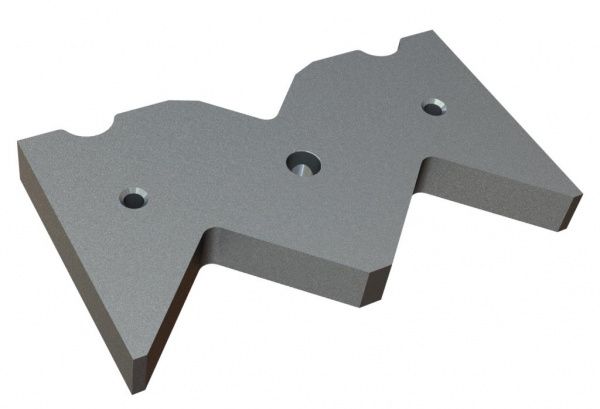

Counter knife GMMW0356-8G2 from CUTMETALL for shredding machines from Mewa/Ehehalt/Andritz Mewa/THM



Compatibility with machines:

The counter knife perfectly fits the Mewa Alpha Cutter model series by the producer Mewa/Ehehalt/Andritz Mewa/THM.



Cutting performance and durability:

The shape and the material used for constructing have a considerable impact on the resistance and service life.

Compared to the Y-, X-, W- and W9-versions, the W8-variant wears faster, but in return demonstrates high toughness. This variation is insensitive to many impurities and is accordingly suitable for utilizations with demanding conditions. This W8-version has an advantage in terms of sustainability. This is because worn out components can usually be re-welded or re-armoured without resulting in breakage or machine damage. The material is a cold work steel.

In this option, the items are hardened from the edge layer to the core. This means that the counter knife wears consistently over its lifetime.



Fastening in the machine:

This counter knife can be used for knives and cutters with a length and width of 145mm. Due to the wide range of shredder models, further configuration variants are possible.

When fitting the counter knife, please assure that it is only fixed to knife holders or knife crossbars with an intact contact surface, as otherwise breakage may occur.



General characteristics:

This counter knife is 356mm long, 200mm wide and 39mm high.

As this counter knife belongs to the Premium Line, the spare part presented is manufactured exclusively in Germany.



Field of application:

Besides a broad variety of break down applications, the counter knife optimally crushes the subsequent input materials:

  • Subsitute fuels
  • Commercial & industrial waste
  • Domestic waste
  • Waste wood
  • Bulky waste
  • Plastic
  • Paper
  • Tires
  • Electronical waste



In view of such a comprehensive range of application areas, we would be happy to support you in selecting the perfect product. Our team of experts will determine your particular needs in a personal meeting and help you to choose the ideal combination. So, do not hesitate to contact us!

Technical specifications
suitable to manufacturer
MeWa | Ehehalt | Andritz MeWa | THM Recycling
suitable to machine
THM XL Mewa Alpha Cutter 3700 XXL Mewa Alpha Cutter Alpha Cutter 2200 L Mewa Alpha Cutter 2900 XL
production line
Premium Line = knives Made in Germany
knife features
higher wear / higher toughness higher wear / very higher toughness
article group
counter knife | shredder bed knife
length
356.00
width
200.00
height
39.00
weight in kg
16.58
material | hardness
AISI 6F7 | DIN 1.2767 | 54-56 HRC AISI D2 | DIN 1.2379 | 54-56 HRC
