belt pulleys and accessories
from CUTMETALL - your spare parts specialist
In our wide range of products you will find various V-belt pulleys and accessories.
» Further information about the differences between the various V-belt pulleys can be found below the articles.
Filter
performance / version
performance / version
No entries found
65 Products
V-belt pulley SPC Ø335, 8 grooves, taper bushing version 4040
Item No.: KSLN0335-G8C9
Delivery time on request

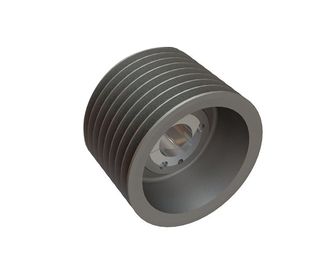

V-belt pulley 8V Ø355, 6 grooves, version taper bushing 4545
Item No.: KSLN0355-G689
Delivery time on request

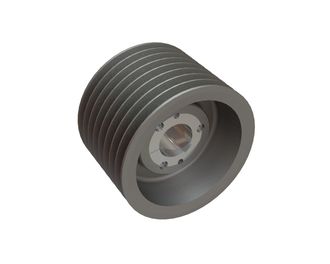

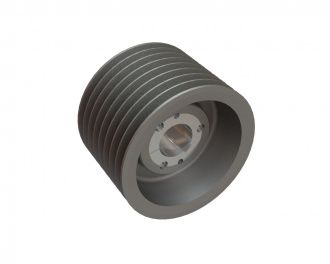

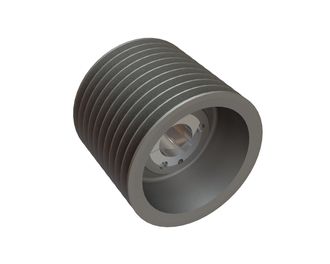

V-belt pulley 8V Ø355, 8 grooves, taper bushing version 4545
Item No.: KSLN0355-G889
Delivery time on request
V-belt pulley 8V Ø355, 8 grooves, taper bushing version 4545
Item No.: KS0355-G889-4545
Delivery time on request

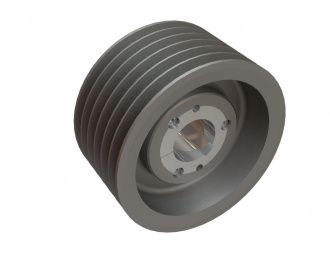

V-belt pulley SPC Ø375, 6 grooves, version taper bushing 4040
Item No.: KSLN0375-G6C9
Delivery time on request
V-belt pulley SPC Ø400 6 grooves version taper bushing 4040
Item No.: KSLN0400-G6C9
Delivery time on request
V-belt pulley SPC Ø450, 8 grooves, taper bushing version 5050
Item No.: KSLN0450-G8C9
Delivery time on request

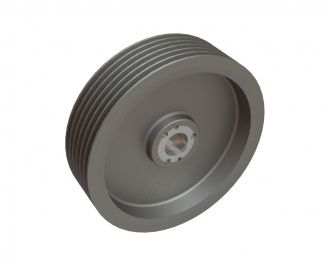

Motor pulley SPC pitch width 475 6 grooves version taper bushing 4040
Item No.: KSLN0475-G6C9
Delivery time on request
V-belt pulley 6x ØSPC 710 for tapered clamping bush 5050
Item No.: KSLN0710-G6C10
Delivery time on request
Countershaft pulley SPC nominal width 710, 6 grooves, taper bushing version 5050
taper bushing must be ordered separately
Item No.: KS0710-G6C10-5050
Delivery time on request
V-belt pulley SPC Ø236 8 grooves version taper bushing 3535
Item No.: KSMW0236-G8C4
Delivery time on request
profile check template SPC for lock washers
Item No.: KSSCHAB-SPC0
In Stock
About hub V-belt pulleys and taper bush V-belt pulleys
Belt pulleys (also called hub pulleys) are important machine elements which are required in a V-belt drive. A V-belt or power belt is used to connect two shafts together. This type of pulley is often called a V-belt pulley or grooved pulley. Their material is usually grey cast iron, often referred to as GG-20 or EN-GJL 200.
There are three belt-pulley varieties- Solid disk: full material between hub and rim
- Bottom disk: Material between hub and rim turned out
- Arm disk: Material between hub and rim only webs
In contrast to taper V-belt pulleys, hub V-belt pulleys must be drilled and grooved separately.
Therefore a V-belt pulley for taper tension bushes is easier to handle and offers the following advantages:- the shaft/hub connection can be easily aligned
- the drive elements can be easily replaced as soon as the requirement changes
- one wedge disk can be used for many shaft diameters

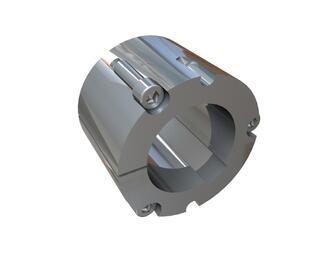

All taper clamping bushes have a bore including keyway according to DIN. The keyway supports the entrainment of the disc by the shaft.
Want to learn more about our V-belt pulleys and taper bush V-belt pulleys?
CUTMETALL Products – Precision-fit. Durable. Efficient.At CUTMETALL we draw on decades of experience in the recycling industry to provide a dependable combination of quality, fit and service.
Our specialists support you in selecting suitable parts for your shredding or size-reduction tasks and offer practical application advice tailored to your setup and material stream.
Our spare and wear parts are CUTMETALL products - engineered for compatibility. They are not sourced from OEMs. The trademarks mentioned are the property of their respective owners. CUTMETALL is not commercially affiliated with these companies.
Didn’t find the part you were looking for? » Get in touch with us.
