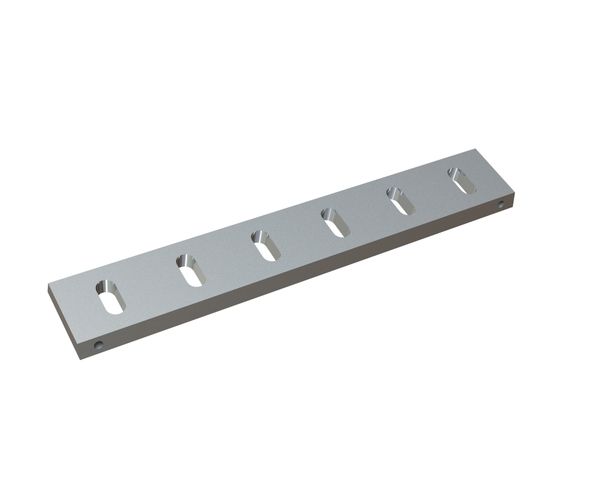

Stator knife 589x100x22 Premium Line 6 long slot, edge 75°, 4xM12 threads, X-version

Stator knife SMHD0589-X00 by CUTMETALL for crushing machines by Herbold Meckesheim.



Compatibility with machines:

This stator knife has been designed for Herbold SMS series by manufacturer Herbold Meckesheim.



Cutting performance and durability:

Through the use of particular materials and the variance in the cutting shape, the product can be adjusted to the operational scenario in terms of throughput and knife life.

The stator knife is made of tool steel and is thus assigned to our X-variation, which is the standard version in most applications.

Here we offer you a perfect combination of resistance to wear and toughness at the same time.

Items of this variant are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is homogenous in relation to its life cycle.

We highlight that this option should not be armoured or welded on. This has a negative impact on the material structure of the stator knife, which can subsequently lead to breakage and machine damage.



Fastening in the machine:

When fitting the stator knife, please assure that it is only attached to knife holders or knife crossbars with an intact contact surface, as otherwise breakage may occur.



General characteristics:

The measurements of the stator knife are 589mm long, 100mm wide and 22mm high.

The inclination of the cutting edge is 75°.

All our Premium Line products are manufactured only in Germany.



Field of application:

In addition to a broad range of break down applications, the stator knife can be used for the following input:

• Foils
• Plastic
• Canisters
• Barrels
• Bumpers
• Thinwanned tubes
• Injection molding waste
• Profiles
• Stancing grids
• Foams
• Deep-drawn parts



In view of such a wide field of application areas, we would be glad to support you in choosing the ideal component. Our team of experts will determine your specific needs in a personal meeting and help you to choose the suitable combination. So, please contact us!
