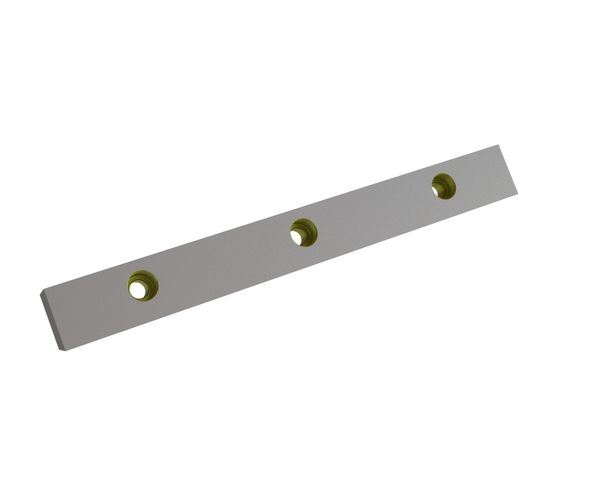

Stator knife 306x35x18 Eco line 3 counter-sunk holes, edge 80°, X-version

Stator knife SMML0306-X00-E by CUTMETALL for crushing machines by Meccanica Molinari.



Compatibility with machines:

The stator knife is perfectly suitable for cutting millses and granulators from Meccanica Molinari.



Cutting performance and durability:

The wear behaviour and thus also the knife life can be influenced by the material and the cutting shape. This means that the performance can be well configured to the break down application.

In the X-variation, the stator knife is made of tool steel, which is our standard option in most applications. It is defined by a medium hardness.

Here you are offered a good compromise between resistance to wear and toughness.

In this version, the cutting tools are hardened from the edge layer to the core. This means that the stator knife wears evenly over its lifetime.

However, this variant must not be armoured or welded on, as it negatively influences the structure of the components. Subsequently, fractures and machine damage are possible.



General characteristics:

This spare part measures 306mm in length, 35mm in width and 18mm in height.

The inclination of the cutting edge is 80°.

This Eco Line stator knife is reliable, can get the job done and is also price-competitive in comparison to our Premium Line.
