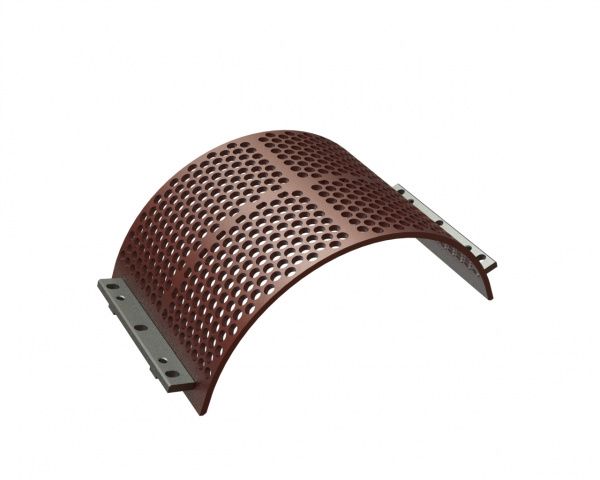

Screen basket 524 wide, sheet thickness t=15

Screen basket SKLN0524-AR25 from CUTMETALL for shredding machines from Lindner Recyclingtech



Compatibility with machines:

The screen basket is a perfect fit for the previous model of Lindner Komet model series from the manufacturer Lindner Recyclingtech.



Performance and screening behaviour:

By using different materials and varying the geometry, the screen basket can be individually customized to the application in terms of throughput and service life.

The additional hardness of the Hardox steel makes this variation precisely fitting for applications with high demands on wear. This provides a longer life span and therefore guarantees durability.

To enable the screen basket to process the input material properly, this screen basket has circular perforations. Moreover, the diameter of each hole is 25mm and the margin widths between the cutouts are 7mm each.



General Characteristics:

In order to tolerate the above-mentioned application conditions, the screen basket was manufactured with a sheet thickness of 15mm and a width of exactly 524mm.



Alternative articles:

At present, the spare part presented is only available in the above-named option. But you already have another material in mind? You are welcome to contact us now! Our CUTMETALL sales team will make the desired screen basket for you after we have checked the possibility of using an alternate material in production.
