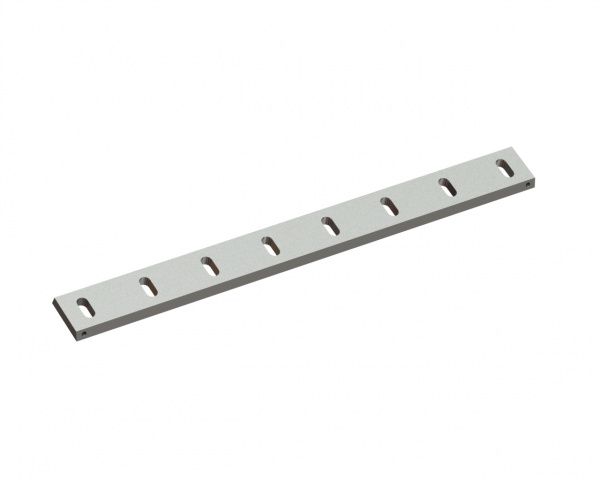

Stator knife 995x100x22 Premium Line 8 long slots, edges 75°, 4x M12 threads, W-versio

Stator knife SMHD0995-W00 by CUTMETALL for crushing machines by Herbold Meckesheim.

Compatibility with machines:

Cutting performance and durability:

The item can be configured to the operational scenario, depending on the various materials and varying shape.

Knives in this W-variation are 5% softer in comparison to the X-variant and have a lower susceptibility to impurities. The part is manufactured out of alloyed tool steel, which makes it suitable for demanding areas of applications. However this option has a shorter durability.

Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures persistent wear over the tool life of the stator knife.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will fundamentally weaken the structure.

Fastening in the machine:

When installing, please also assure that the support of the knives is in an intact condition, as otherwise breakage may occur.

General characteristics:

The dimensions of the stator knife are 995mm long, 100mm wide and 22mm high.

Its cutting edge is inclined at 75°.

This stator knife belongs to the Premium Line, which is produced exclusively in Germany.

Field of application:

Additionally to a broad variety of break down applications, the stator knife can be used for the following input materials:

• Foils
• Plastic
• Canisters
• Barrels
• Bumpers
• Thinwanned tubes
• Injection molding waste
• Profiles
• Stancing grids
• Foams
• Deep-drawn parts

In view of such a comprehensive range of application areas, we would be happy to support you in choosing the ideal component. Our team of experts will determine your particular needs in a personal meeting and help you to choose the perfect combination. So, please contact us!
