Stator knife 995x100x22 Eco Line

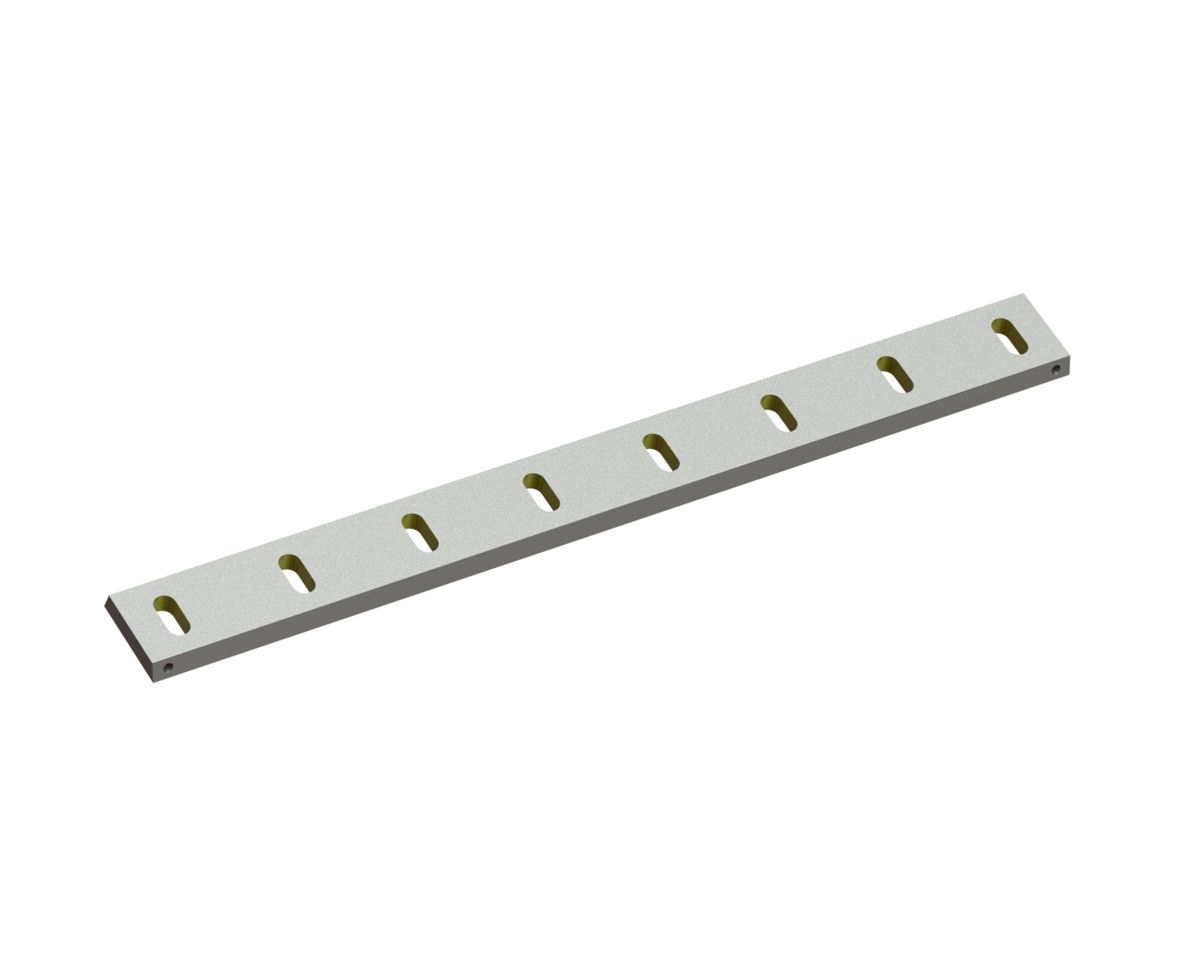

Stator knife SMHD0995-Y00-E by CUTMETALL for crushing machines by Herbold Meckesheim.
Compatibility with machines:
This component is perfectly applicable for cutting millses and granulators from Herbold Meckesheim.
Cutting performance and durability:
The shape and the material used for constructing have a significant effect on the insensitivity and knife life.
Due to the alloyed tool steel of the Y-option, it is approx. 5 % harder than the X-version. This means that a longer tool life can be secured. In comparison, however, the stator knife is more susceptible to impurities, which can lead to breakage more quickly.
Cutting tools of this variant are hardened throughout, which means that this hardness remains persistent from the edge to the core. Due to that the wear is homogenous in relation to its life span.
However, this version must not be armoured or welded on, as it negatively influences the structure of the components. Consequently, fractures and machine damage are possible.
Fastening in the machine:
It is imperative that the stator knife is only installed to knife holders or knife crossbars with intact supports, as otherwise the attachment may cause breakage.
General characteristics:
This item measures 995mm in length, 100mm in width and 22mm in height.
The inclination of the cutting edge is 75°.
As the stator knife is part of our Eco Line, this spare part is a cost-effective alternative to the Premium Line.
| production line | Eco Line = CUTMETALL foreign production |
| suitable to manufacturer | Herbold Meckesheim GmbH |
| knife features | lower wear / lower toughness |
| article group | stator knife | bed knife | static knife |
| length | 995 |
| width | 100 |
| height | 22 |
| weight in kg | 14.44 |
| material | hardness | Cr12MoV | 60-62 HRC |
