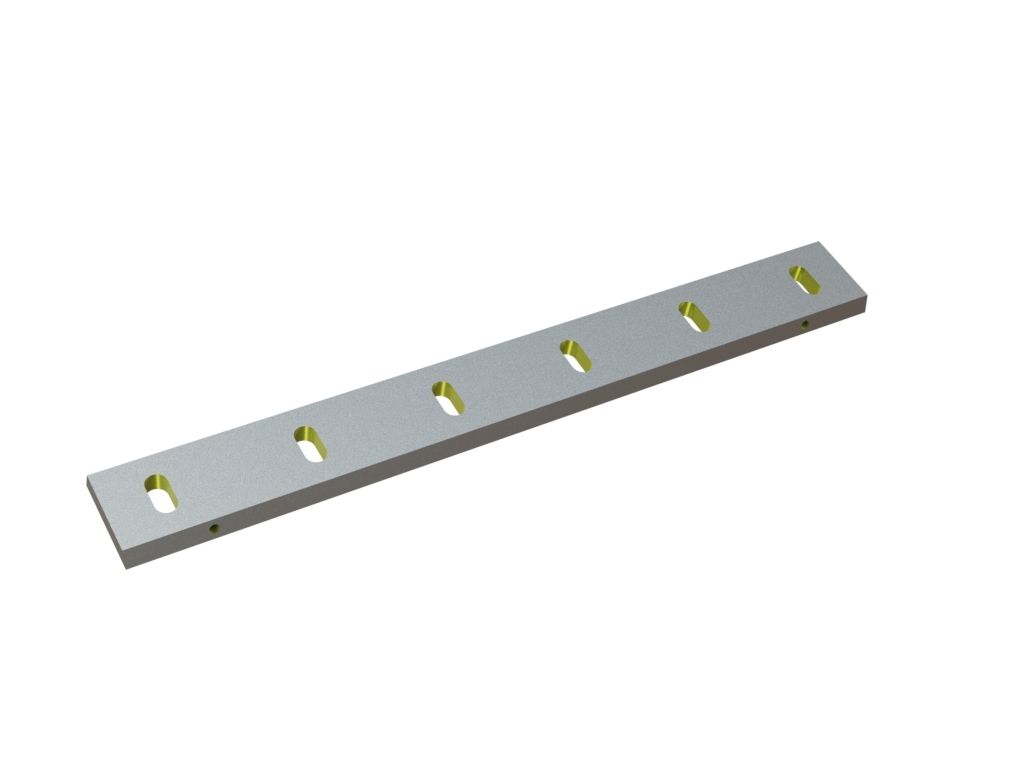

Stator knife 698x85x18 Eco Line

6 long slot 18x38, double sided blade 75°, X-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number: SMZM0698-X00-E

In Stock

Detailed description

Stator knife SMZM0698-X00-E from CUTMETALL for recycling machines from Zerma (Amis)

Compatibility with machines:

For cutting millses and granulators by the producer Zerma (Amis) the stator knife is ideally fitting.

Cutting performance and durability:

The shape and the material used for constructing have a significant effect on the resistance and product lifespan.

In the X-option, the stator knife is made of tool steel, which is our standard variant in most applications. It is identified by a medium hardness.

Here you are offered a balanced relationship between insensitivity to wear and toughness simultaneously.

In this version, the products are hardened from the edge layer to the core. This means that the stator knife wears consistently over its lifetime.

However, this variant must not be armoured or welded on, as it negatively influences the structure of the spare parts. Subsequently, fractures and machine damage are possible.

General characteristics:

The spare part measures 698mm in length, 85mm in width and 18mm in height.

The inclination of the cutting edge is 75°.

This favourable option in comparison to our Premium Line is part of the Eco Line.

Technical specifications

production line	Eco Line = CUTMETALL foreign production
suitable to manufacturer	Zerma \| AMIS, Amis \| Zerma
suitable to machine	Zerma GSE 500/700
knife features	medium wear / medium toughness
article group	stator knife \| bed knife \| static knife
length	698
width	85
height	18
weight in kg	7.32
material \| hardness	Cr12MoV \| 57-59 HRC
