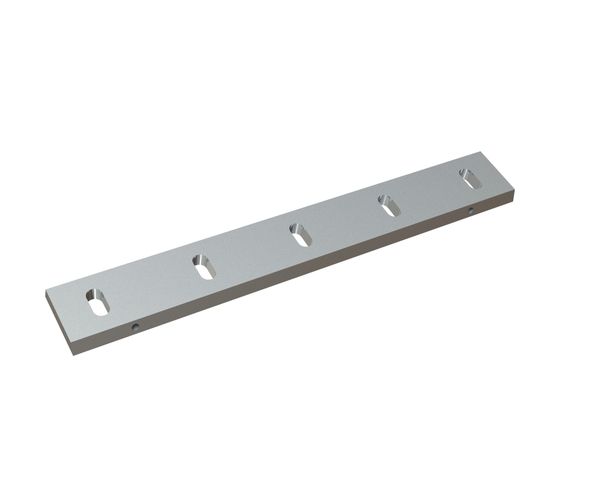

Stator knife 588x85x18 Premium Line 5x long slots, edge double-sided 75°, 4xM10 thre

Stator knife SMZM0588-X01 by CUTMETALL for shredding machines by Zerma (Amis).

Compatibility with machines:

Cutting performance and durability:

The item can be matched to the operational scenario, depending on the different materials and the variance in shape.

The X-variation of this spare part is made of tool steel. The cutting tool has a medium hardness and lays between the W- and Y-variants.

Here you are offered a good compromise between insensitivity to wear and toughness.

Products of this option are hardened throughout, which means that this hardness remains the same from the edge to the core. Due to that the wear is even in relation to its life span.

However, this variant must not be armoured or welded on, as it negatively influences the structure of the items. Consequently, fractures and machine damage are possible.

Fastening in the machine:

When installing, please also assure that the support of the knives is in an ideal condition, as otherwise breakage may occur.

General characteristics:

The following dimensions are available: 588mm length, 85mm width, 18mm height.

Its cutting edge is inclined at 75°.

All our Premium Line spare parts are produced only in Germany.
