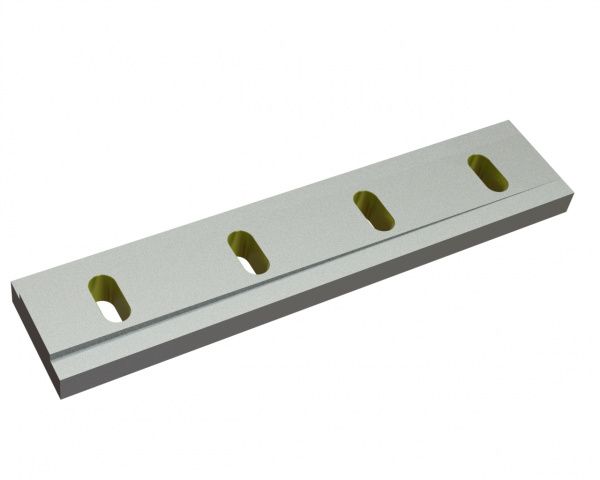

Stator knife 500x105x34 Eco Line 4x long slots, X-version for Eldan FG 1500
Stator knife 500x105x34 Eco Line 4x long slots, X-version for Eldan FG 1500

Stator knife 500x105x34 Eco Line 4x long slots, X-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: SMED0500-X00-E
In Stock
Detailed description

Stator knife SMED0500-X00-E by CUTMETALL for crushing machines by Eldan Recycling.



Cutting performance and durability:

This item can be configured to the application area, depending on the different materials and varying cutting shape.

The product presented is made of tool steel in the X-variation, which is our standard variant for most application scenarios. The hardness of this stator knife is in the medium range.

This combines both toughness and wear resistance in a balanced ratio.

In this option, the spare parts are hardened from the edge layer to the core. This means that the stator knife wears steadily over its lifetime.

To avoid breakage and machine damage, it is crucial not to armour or weld on this type, as it will severely weaken the structure.



General characteristics:

The measurements of this cutting tool are 500mm in length, 105mm in width and 34mm in height.

This favourable version in comparison to our Premium Line is part of the Eco Line.

Technical specifications
production line Eco Line = CUTMETALL foreign production
suitable to manufacturer
suitable to machine Eldan FG 1500, Eldan FG 1502, Eldan FG 476, Eldan FG 952, Eldan FG | Fine Granulator, Eldan FG 950, Eldan FG 1504
knife features medium wear / medium toughness
article group stator knife | bed knife | static knife
Länge 500
width 105
height 34
weight in kg 11.4
material | hardness Cr12MoV | 57-59 HRC
