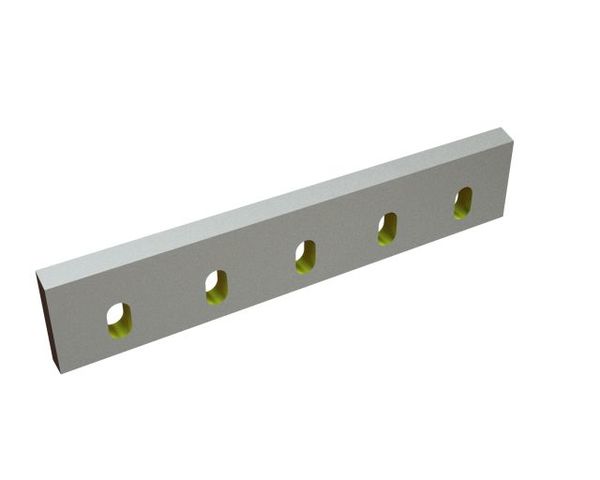

Stator knife 498x100x22 Eco Line 5 long slots, edge 75°, 2xM12 threads, X-version

Stator knife SMHD0498-X00-E from CUTMETALL for crushing machines from Herbold Meckesheim



Compatibility with machines:

This stator knife is suitable for cutting millses and granulators from Herbold Meckesheim.



Cutting performance and durability:

Through the use of various materials and the variance in the cutting geometry, the item can be configured to the application area in terms of throughput and durability.

The stator knife is made of tool steel and is thus assigned to our X-variant, which is the standard version in most applications.

This combines both toughness and wear insensitivity in a balanced ratio.

Products of this variation are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is homogenous in relation to its life span.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will fundamentally weaken the structure.



Fastening in the machine:

When installing, please also ensure that the support of the knives is in an undamaged condition, as otherwise breakage may occur.



General characteristics:

The measures of the stator knife are 498mm long, 100mm wide and 22mm high.

The inclination of the cutting edge is 75°.

As the stator knife is part of our Eco Line, this spare part is a cost-effective alternative to the Premium Line.
