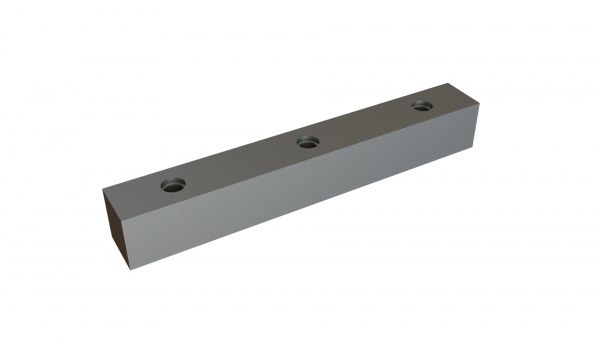

Stator knife 211x30x28 Premium Line 3xM12 threads, double sided countersink, Y-versio
Stator knife SMAP0210-Y00 from CUTMETALL for recycling machines from Hosokawa Alpine AG
Compatibility with machines:
This item is perfectly fitting for cutting millses and granulators from Hosokawa Alpine AG.
Cutting performance and durability:
This component can be customised to the operational scenario, depending on the particular materials and the variance in cutting shape.
Knives made in this Y-option will increase the operating time of your spare part. Due to the hardness the susceptibility to impurities is higher, which makes it easier to break.
Products of this version are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is homogenous in relation to its life span.
We emphasise that this variant should not be armoured or welded on. This has a negative effect on the material structure of the stator knife, which can subsequently lead to breakage and machine damage.
Fastening in the machine:
When attaching, please also assure that the support of the knives is in a flat condition, as otherwise breakage may occur.
General characteristics:
The cutting tool measures 210.8mm in length, 30mm in width and 28mm in height.
As part of the Premium Line, this stator knife is of German manufacturing.
| production line | Premium Line = knives Made in Germany |
| suitable to manufacturer | Hosokawa Alpine AG |
| knife features | lower wear / lower toughness |
| article group | stator knife | bed knife | static knife |
| Länge | 210 |
| width | 30 |
| height | 28 |
| weight in kg | 1.3 |
| material | hardness | AISI D2 | DIN 1.2379 | 60-62 HRC |
