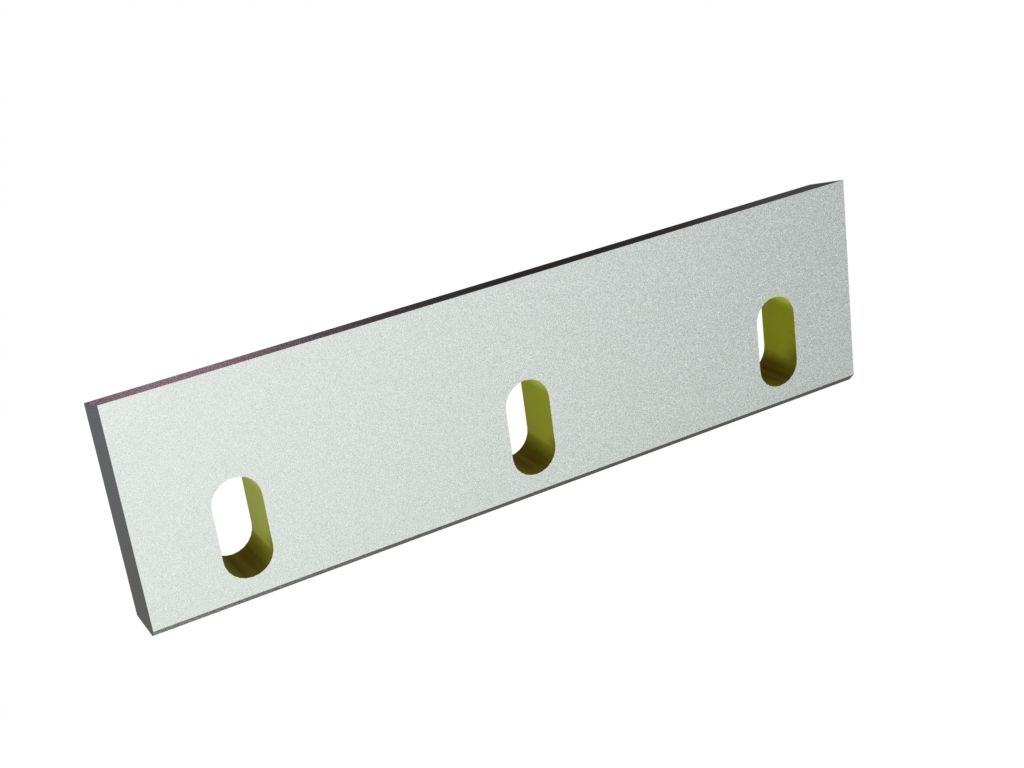

Stator knife 200x57x14 Premium Line

3 long slot, blade 75°, Y-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number: SMDR0200-Y01

Delivery time on request

Detailed description

Stator knife SMDR0200-Y01 by CUTMETALL for crushing machines by Dreher Maschinenbau.

Compatibility with machines:

The stator knife can be used for the cutting mills and the granulator of the Dreher Maschinenbau company.

Cutting performance and durability:

The performance of the product depends largely on the variation of the material and cutting geometry.

Due to the alloyed tool steel of the Y-variant, it is approx. 5 % harder than the X-option. This means that a longer durability can be secured. In comparison, however, the stator knife is more susceptible to impurities, which can lead to fractures more quickly.

In this version, the products are hardened from the edge layer to the core. This means that the stator knife wears homogenously over its lifetime.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will severely weaken the structure.

General characteristics:

This cutting tool measures 199.5mm in length, 57mm in width and 14mm in height.

The inclination of the cutting edge is 75°.

As part of the Premium Line, this stator knife is of German production.

Technical specifications

production line	Premium Line = knives Made in Germany
suitable to manufacturer	Heinrich Dreher Maschinenbau
knife features	lower wear / lower toughness
article group	stator knife \| bed knife \| static knife
length	199
width	57
height	14
weight in kg	1.13
material \| hardness	AISI D2 \| DIN 1.2379 \| 60-62 HRC
