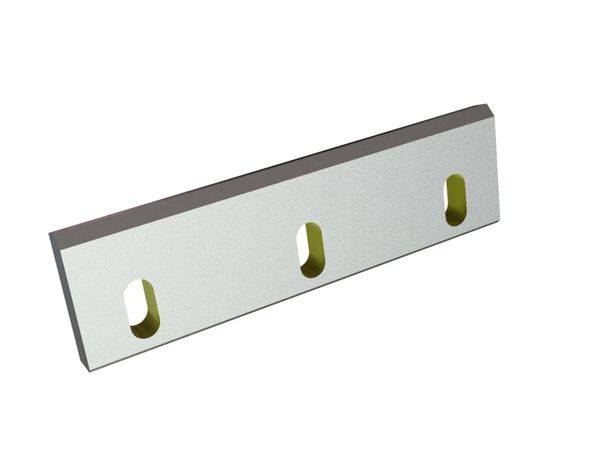

Stator knife 200x57x14 Eco Line 3 long slot, blade 75°/45°, Y-version

Stator knife SMDR0200-Y02-E from CUTMETALL for recycling machines from Dreher Maschinenbau



Compatibility with machines:

For cutting millses and granulators by the producer Dreher Maschinenbau the stator knife is excellently suitable.



Cutting performance and durability:

The shape and the material used for constructing have a considerable effect on the insensitivity and lifespan.

Due to the alloyed tool steel of the Y-variant, it is approx. 5 % harder than the X-option. This means that a longer knife life can be secured. In comparison, however, the stator knife is more susceptible to impurities, which can lead to fractures more quickly.

In this version, the products are hardened from the edge layer to the core. This means that the stator knife wears homogenously over its lifetime.

We emphasise that this variation should not be armoured or welded on. This has a negative impact on the material structure of the stator knife, which can subsequently lead to breakage and machine damage.



General characteristics:

The subsequent measures are available: 199.5mm length, 57mm width, 14mm height.

Its cutting edge is inclined at 75°/45°.

As the stator knife is part of our Eco Line, this component is a cost-effective alternative to the Premium Line.
