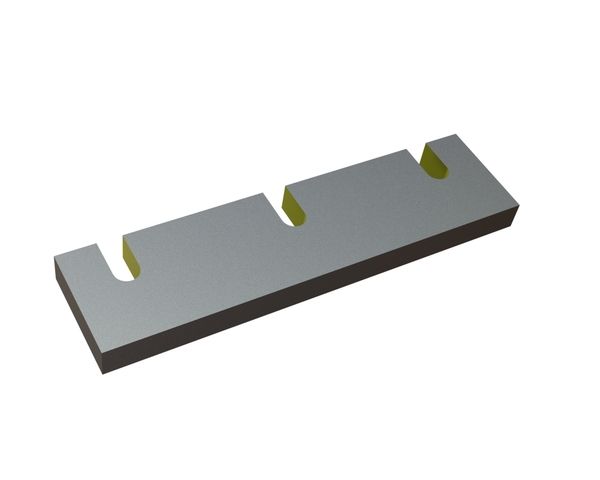

Stator blade 392x100x28 Eco Line, 3 slots, 2xM16 threads, cutting edge 90°, X-variant

Stator knife SMZM0392-X00-E from CUTMETALL for crushing machines from Zerma (Amis)



Compatibility with machines:

This deflector wedge is ideally applicable for cutting millses from Zerma (Amis).



Cutting performance and durability:

The cutting geometry and the material used for constructing have a significant effect on the insensitivity and product lifespan.

In the X-variation, the stator knife is made of tool steel, which is our standard variant in most break down applications. It is defined by a medium hardness.

This combines both toughness and wear resistance in a balanced ratio.

Products of this version are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is even in relation to its life cycle.

Hardfacing or welding on this option should be avoided, as the structure will otherwise be seriously weakened. This can lead to breakages and machine damage.



Fastening in the machine:

When attaching the stator knife, please ensure that it is only adapted to knife holders or knife crossbars with a flat contact surface in order to prevent breakage.



General characteristics:

The deflector wedge is 392mm long, 100mm wide and 28mm high.

The inclination of the cutting edge is 90°.

This favourable version in comparison to our Premium Line is part of the Eco Line.



Field of application:

Along with a wide range of application areas, the stator knife optimally processes the subsequent input materials:

• Foils
• Plastic
• Canisters
• Barrels
• Bumpers
• Thinwanned tubes
• Injection molding waste
• Profiles
• Stancing grids
• Foams
• Deep-drawn parts
• Pre-shredded tubes
• Bottle crates



Building on our extensive knowledge about recycling machines we would like to support you choosing the optimal spare to meet your needs. Therefore, do not hesitate to contact us! Our experts of the CUTMETALL team will support you make the ideal choice to get the job done by determining your particular needs in a personal conversation.
