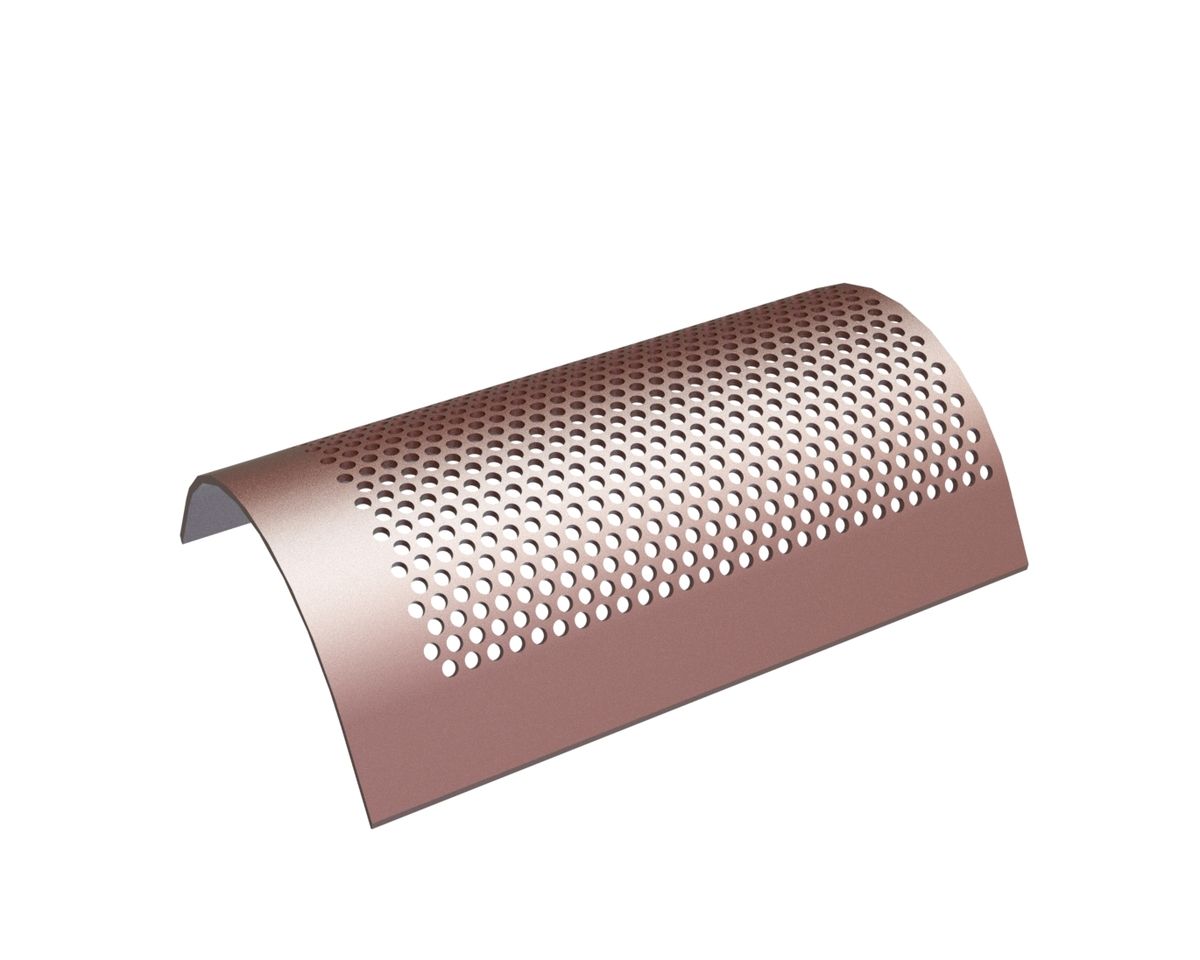

Screen plate 854 wide, sheet thickness t=10

Screen plate SYED0854-AR18 from CUTMETALL for shredding machines from Eldan Recycling



Compatibility with machines:

With regard to the compatibility of the spare part, the focus is especially on the machine manufacturer Eldan Recycling. Accordingly, this screen plate can be precisely combined with the Eldan MPR and Eldan TR model series of this brand.



Performance and screening behaviour:

Both the geometry and the material used for constructing have a decisive effect on the insensitivity and service life of the screen plate.

This A-variation is an ideal choice in terms of longevity. It can be exposed to high wear conditions due to its extra hardness and abrasion resistance. It is made out of resistant Hardox steel.

For proper screening of the input material, the perforations of the screen plate are round and have a diameter of 18mm each. The width of the margin between them is 8mm each.



General characteristics:

In use, the screen plate works with a sheet thickness of 10mm. Furthermore, the screen plate is installed with a width of 854mm in the described shredders.



Alternative articles:

The article is only available in one variant so far. Nevertheless, you are welcome to get in touch now! After we have researched together wether it is possible to produce the screen plate in a desired material version, we will have the ideal product made for your explicit needs.
