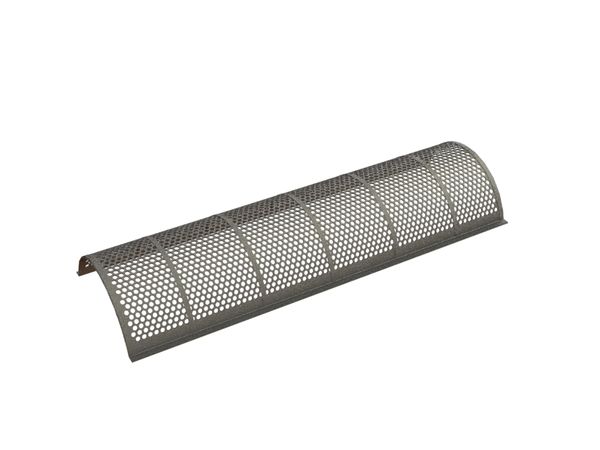

Screen plate 1450 wide, sheet thickness t=4+1 Hole Ø4, bar width 2

Screen basket SKED1450-1RG04 from CUTMETALL for shredding machines from Eldan Recycling



Compatibility with machines:

The screen basket is suitable for the Eldan FG recycling machine from the company Eldan Recycling.



Performance and screening behaviour:

In terms of throughput and lifespan, the performance of the screen basket can be adjusted by influencing it with different materials and a variance in shape.

In this context, this item in the 1-variant offers a price advantage due to the use of unalloyed steel.

For reliable screening of the input material, the cutouts of the screen basket are round and have a diameter of 4mm each. The width of the margin between them is 2mm each.



General Characteristics:

In production, a minimum sheet thickness of the screen basket is necessary because of the small perforations. Thus, the 1450mm wide screen basket has, in addition to a sheet thickness of 4mm, an extra lining of 1mm on the contact surfaces. This rebuilds the original sheet thickness so that the items can also be inserted with an accurate fit. This combines the safety of our articles with the necessary flexibility.



Alternative articles:

At the moment, the article presented is only available in the above-mentioned variation. But you already have another material in mind? Please contact us now! Your team of experts at CUTMETALL will make the desired screen basket for you after we have checked the possibility of using an alternate material in production.
