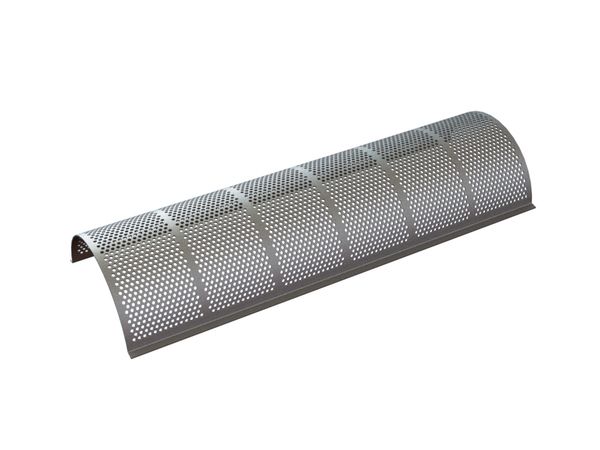

Screen plate 1450 wide, sheet thickness t=3 outside, hole Ø4.2, bar width 2.5

Screen plate SYED1450-1R0425 from CUTMETALL for recycling machines from Eldan Recycling



Compatibility with machines:

The screen plate is exactly suitable for the Eldan FG series from the manufacturer Eldan Recycling.



Performance and screening behaviour:

Both the geometry and the material used have a significant influence on the resistance and durability of the screen plate.

In this variation, an unalloyed steel is used as the material of this product. For that reason, a fundamental price advantage over other options can be given.

For proper screening of the input, the cutouts of the screen plate are round and have a diameter of 4mm each. The width of the spaces between them is 2.75mm each.



General Characteristics:

The screen plate with the width of 1450mm ensures an applicable installation in the machines described. Moreover, the spare part with 3mm sheet thickness convinces with its work performance.



Alternative articles:

At present, this screen plate is only available in the option shown. If your specific application has different requirements, you are welcome to get in touch now! We will investigate together whether and how to cater to your explicit needs.
