Screen plate 1240 wide, sheet thickness t=6 hole ∅12, bar width 6 for Netzsch-Condux Mahltechnik GmbH
Screen plate 1240 wide, sheet thickness t=6 hole ∅12, bar width 6 for Netzsch-Condux Mahltechnik GmbH

Screen plate 1240 wide, sheet thickness t=6 hole ∅12, bar width 6

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: SYCX1240-AQ12
Delivery time on request
Detailed description

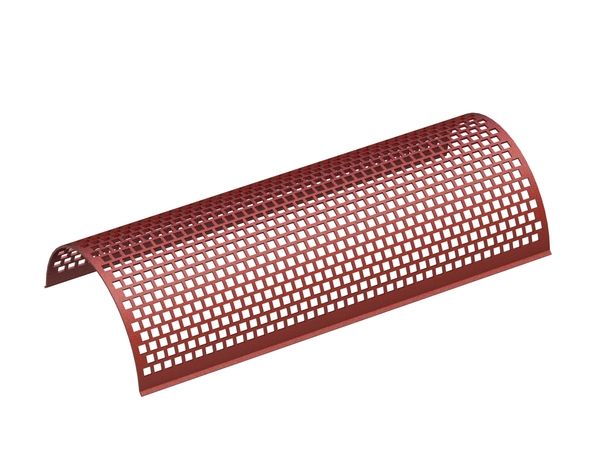

Screen plate SYCX1240-AQ12 from CUTMETALL for shredders from Condux



Compatibility with machines:

The screen plate is an ideal fit for the Bellmer AkuPress AS series from the machine manufacturer Condux.



Performance and screening behaviour:

By using different materials and varying the shape, the screen plate can be individually configured to the area of application in terms of throughput and durability.

This A-option is an excellent choice in terms of tool life. It can be exposed to high wear conditions due to its extra hardness and abrasion insensitivity. It is made out of resistant Hardox steel.

To screen the input material properly, the perforated surface of the screen plate is provided with square perforations. These holes each measure 12 by 12mm. The margins between them have a total width of 6mm.



General Characteristics:

While processing, the screen plate works with a sheet thickness of 6mm. In addition, the screen plate is inserted with a width of 1240mm in the described shredders.



Alternative articles:

In this form, we currently only have one version of the presented spare part in our assortment. Nevertheless, if you are interested, we would be happy to check your needs and the possibility of using a different material in manufacturing. Get in touch now!

Technical specifications
production line Hardox
suitable to manufacturer Netzsch-Condux Mahltechnik GmbH
article group Screen plates
Länge 1.24
width 817
height 6
weight in kg 29.4
screen perforation - performance square perforation
