Screen plate 1000 wide, sheet thickness t=10

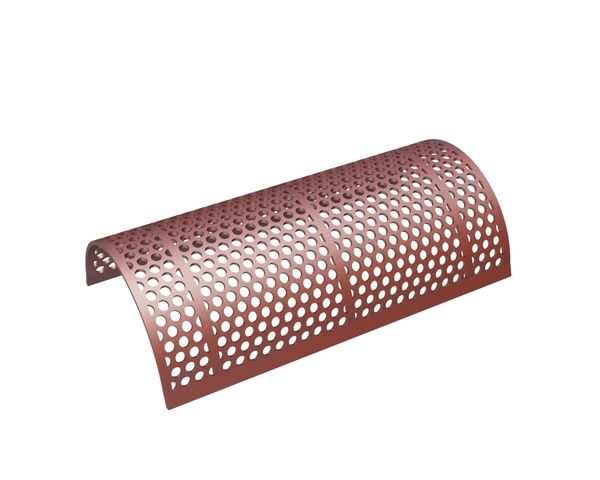

Screen plate SYMW1000-AR25W from CUTMETALL for shredding machines from Mewa/Ehehalt/Andritz Mewa/THM



Compatibility with machines:

The screen plate is ideally fitting for the MEWA UG model series from the manufacturer Mewa/Ehehalt/Andritz Mewa/THM.



Performance and screening behaviour:

Both the geometry and the material used for constructing have a significant effect on the insensitivity and durability of the screen plate.

This A-variant is an ideal choice in terms of tool life. It can be exposed to high wear conditions due to its extra hardness and abrasion resistance. It is made out of insensitive Hardox steel.

To enable the screen plate to process the input properly, this screen plate has circular cutouts. In addition, the diameter of each hole is 24mm and the spaces between the perforations are 10mm each.



General Characteristics:

As the screen plate does not require any additional upgrades, the screen plate has a sheet thickness of over 10mm. On top of that, the width of the spare part presented measures 1000mm.



Alternative articles:

In the dimensions shown, we currently have this product only in this option. Do you already have certain conditions in mind for the material? Get in touch now! Our team of experts at CUTMETALL will investigate the possibility of other material variants with you and take care of the realization immediately.
