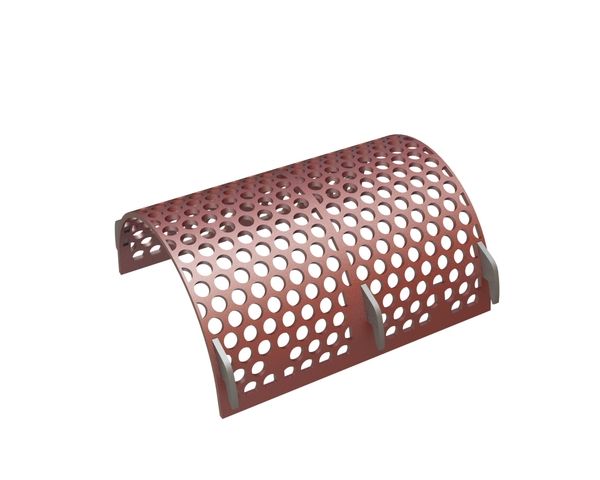

Screen basket 835 wide, sheet thickness t=15 hole Ø40, bar width 13.5, Hardox

Screen basket SKVP0835-AR040 from CUTMETALL for shredding machines from Vecoplan



Compatibility with machines:

The screen basket is an ideal fit for the Vecoplan VEZ model series from the machine manufacturer Vecoplan.



Performance and screening behaviour:

The efficiency of the screen basket depends largely on both the version and the shape.

This resistant steel of the A-variant promises a long tool life. As it is less sensitive to wear due to the additional hardness, it is optimal for use in demanding application areas.

For reliable processing of the input material, the cutouts of the screen basket are round and have a diameter of 40mm each. The width of the margin between them is 13.5mm each.



General Characteristics:

The spare part presented has a width of 835mm and can therefore be suitably installed in the shredding machine. A sheet thickness of 15mm provides, that the screen basket meets the application requirements.



Alternative articles:

In the dimensions shown, we currently have this article only in this option. Do you already have certain requirements in mind for the material? Feel free to contact us now! Our CUTMETALL sales team will check the possibility of other material variations with you and take care of the production immediately.
