Screen basket 573 wide, sheet thickness t=5 hole Ø5, bar width 4 for Herbold Meckesheim GmbH Herbold SML 45/60
Screen basket 573 wide, sheet thickness t=5 hole Ø5, bar width 4 for Herbold Meckesheim GmbH Herbold SML 45/60

Screen basket 573 wide, sheet thickness t=5 hole Ø5, bar width 4

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: SKHD0572-AR053
Delivery time on request
Detailed description

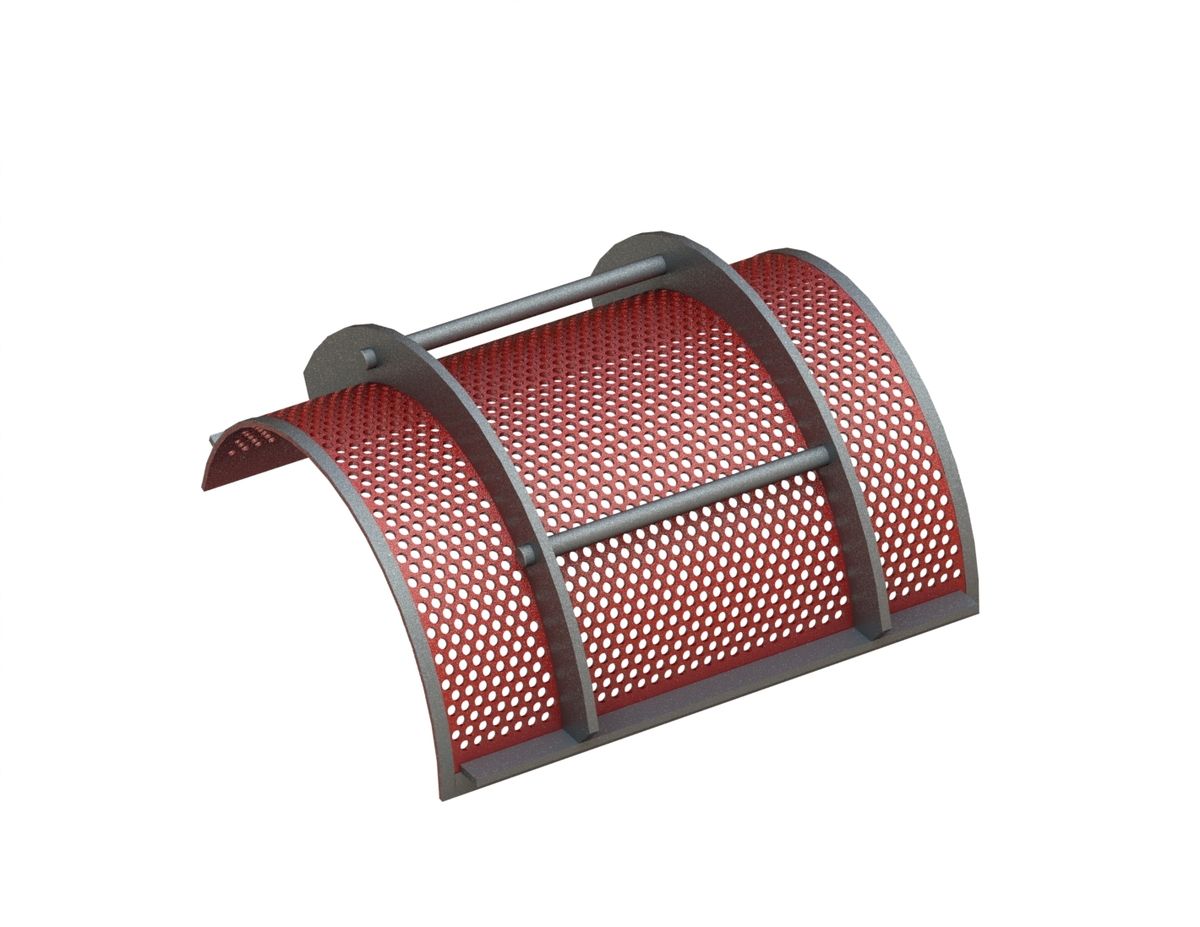

Screen basket SKHD0572-AR053 from CUTMETALL for recycling machines from Herbold Meckesheim



Compatibility with machines:

The screen basket can be installed with an exact fit in the Herbold SMS and Neue Herbold LM series from Herbold Meckesheim.



Performance and screening behaviour:

In terms of throughput and tool life, the performance of the screen basket can be customized by influencing it with different materials and a variance in shape.

The additional hardness of the Hardox steel makes this variant exactly fitting for application areas with high demands on wear. This provides a longer lifetime and therefore guarantees durability.

For proper processing of the input material, the holes of the screen basket are round and have a diameter of 5mm each. The width of the spaces between them is 4mm each.



General characteristics:

In order to withstand the above-mentioned application requirements, the screen basket was manufactured with a sheet thickness of 5mm and a width of exactly 573mm.



Alternative articles:

At present, this screen basket is only available in the version presented. If your specific application has different requirements, get in touch now! We will investigate together whether and how to cater to your specific needs.

Technical specifications
production line Hardox
suitable to manufacturer Herbold Meckesheim GmbH
suitable to machine Herbold SML 45/60
article group screens I screen baskets | granulator screen | shredder screen
Länge 672
width 573
height 5
weight in kg 19.8
screen perforation - performance round perforation
