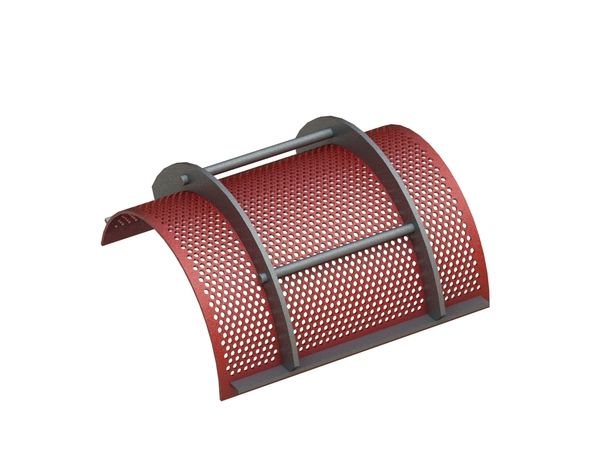

Screen basket 573 wide, sheet thickness t=6 hole Ø4, bar width 3

Screen basket SKHD0572-AR043 from CUTMETALL for recycling machines from Herbold Meckesheim



Compatibility with machines:

The screen basket is perfectly applicable for the Neue Herbold LM series from the company Herbold Meckesheim.



Performance and screening behaviour:

Both the geometry and the material used for constructing have a decisive effect on the resistance and longevity of the screen basket.

This A-variation is an ideal choice in terms of service life. It can be exposed to high wear conditions due to its extra hardness and abrasion insensitivity. It is made out of resistant Hardox steel.

For proper processing of the input, the cutouts of the screen basket are round and have a diameter of 4mm each. The width of the margin between them is 3mm each.



General characteristics:

In order to tolerate the above-mentioned application conditions, the screen basket was produced with a sheet thickness of 6mm and a width of exactly 573mm.



Alternative articles:

The article is only available in one variant so far. Nevertheless, you are welcome to contact us! After we have researched together wether it is possible to manufacture the screen basket in a desired material option, we will have the ideal item made for your explicit needs.

Technical Note – Important Information
This screen features a special perforation with hole diameter smaller than screen plate thickness.
In shredding applications, this may cause material build-up, clogging and reduced throughput.
Please check carefully whether this design is suitable for your specific recycling application.
Incorrect use may affect performance and process stability.
