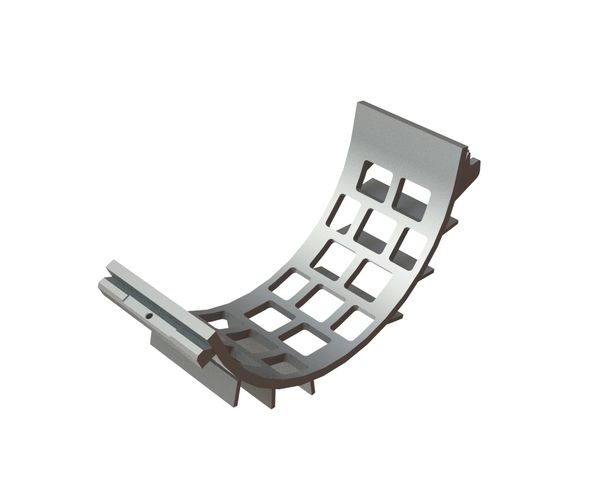

Screen basket 340 wide, sheet thickness t=25 hole Ø100, bar width 24

Screen basket SKLN0340-1QLGS100 from CUTMETALL for shredders from Lindner Recyclingtech



Compatibility with machines:

This screen basket is in the first place intended for the Lindner Polaris series from Lindner Recyclingtech.



Performance and screening behaviour:

Both the shape and the material used have a decisive influence on the resistance and service life of the screen basket.

In this context, this product in the 1-variation offers a price advantage because of the use of unalloyed steel.

To process the input reliably, the perforated surface of the screen basket is provided with square cutouts. These holes each measure 100 by 100mm. The margins between them have a total width of 24mm.

Furthermore, this screen basket is equipped with chip breakers to optimally crush the input material. These are primarily used in applications with wood. The reason for this is that pieces of input material that are already narrow enough to fall through the perforations but are still too long are retained in the machine until they have reached the desired degree of size reduction.



General Characteristics:

To meet the application conditions, the screen basket has a sheet thickness of 25mm. In addition, the article with a width of 340mm is used in the shredding machine.



Alternative articles:

At the moment, the article shown is only available in the above-mentioned option. But you already have another material in mind? Please contact us now! Our CUTMETALL sales team will provide the desired screen basket for you after we have checked the possibility of using an alternate material in production.
