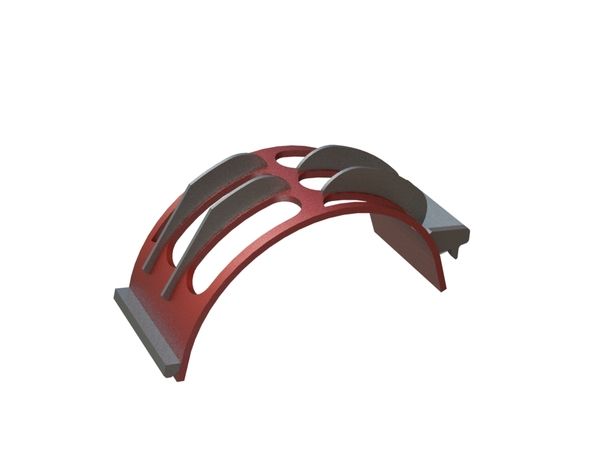

Screen basket 340 wide, sheet thickness t=20 rectangular long slot, bar width 22

Screen basket SKLN0340-AE102 from CUTMETALL for shredding machines from Lindner Recyclingtech



Compatibility with machines:

The screen basket can be inserted with an ideal fit in the Lindner Komet and Lindner Power Komet model series from Lindner Recyclingtech.



Performance and screening behaviour:

In terms of throughput and tool life, the efficiency of the screen basket can be adjusted by influencing it with different materials and a variance in shape.

This resistant steel of the A-variation provides a long service life. As it is less sensible to wear due to the additional hardness, it is perfect for using it in demanding applications.

The screen baskets are rectangular, with the dimensions of each cutout being 100 by 350mm. With these, the input can be reliably processed. The margin width between each hole is 22mm.



General Characteristics:

In order to withstand the above-mentioned application conditions, the screen basket was produced with a sheet thickness of 20mm and a width of exactly 340mm.



Alternative articles:

At present, this screen basket is only available in the option presented. If your specific application has different requirements, you are welcome to get in touch now! We will investigate together whether and how to cater to your specific needs.
