Screen basket 340 wide, sheet thickness t=15
Screen basket SKLN0340-CRPG70 from CUTMETALL for recycling machines from Lindner Recyclingtech
Compatibility with machines:
The screen basket can be inserted with an exact fit in the Lindner Komet and Lindner Power Komet model series from Lindner Recyclingtech.
Performance and screening behaviour:
By using different materials and varying the geometry, the screen basket can be individually matched to the operational scenario in terms of throughput and durability.
This Creusabro high carbon steel variant can withstand high wear even under heavy loads because of its composition. As a result it is excellent for demanding applications.

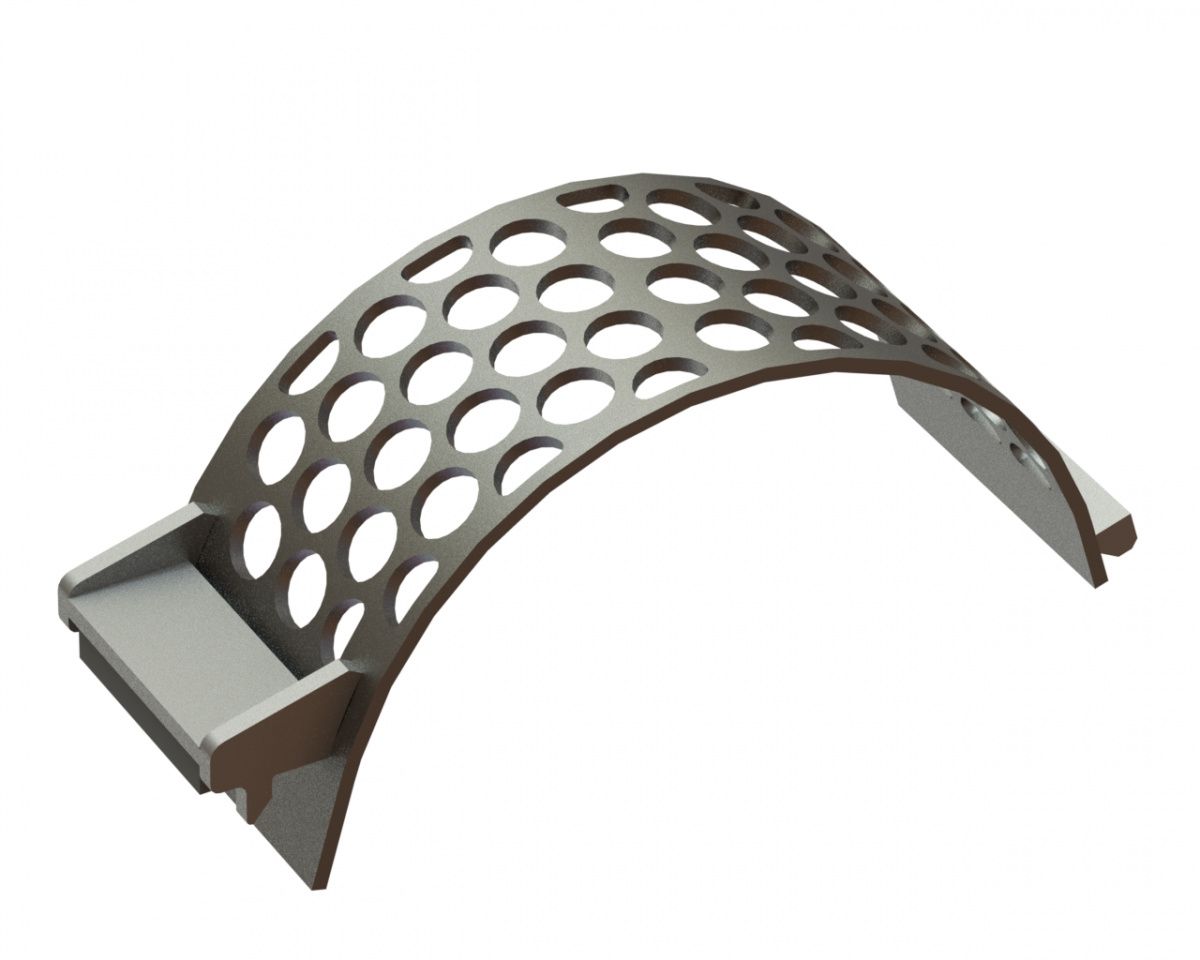

This screen basket processes the input material with circular holes. Distributed over the surface, these consistently measure a diameter of 70mm each. The margins between the perforations have a width of 14mm.
General Characteristics:
In order to take the above-mentioned application requirements, the screen basket was produced with a sheet thickness of 15mm and a width of exactly 340mm.
Alternative articles:
The item is only available in one version so far. Nevertheless, you are welcome to get in touch now! After we have investigated together wether it is possible to produce the screen basket in a desired material variation, we will have the ideal spare part made for your specific needs.
| production line | Creusabro |
| suitable to manufacturer | Lindner Recyclingtech |
| suitable to machine | Lindner Komet 2800, Lindner Komet, Lindner Power Komet / Komet PK, Lindner Power Komet HP / Komet PK HP, Lindner Komet HP, Lindner Power Komet 1800, Lindner Komet 2200 HP, Lindner Power Komet 2200, Lindner Power Komet 2200 HP, Lindner Power Komet 2800, Lindner Komet 1100, Lindner Power Komet 2800 HP, Lindner Komet 1800, Lindner Komet, Lindner Power Komet / Komet PK, Lindner Power Komet HP / Komet PK HP, Lindner Komet HP, Lindner Power Komet 1800, Lindner Komet 2200 HP, Lindner Power Komet 2200, Lindner Power Komet 2200 HP, Lindner Power Komet 2800, Lindner Komet 1100, Lindner Power Komet 2800 HP, Lindner Komet 1800 |
| article group | screens I screen baskets | granulator screen | shredder screen |
| Länge | 940 |
| width | 384 |
| height | 340 |
| weight in kg | 40.7 |
| screen perforation - performance | round perforation |
