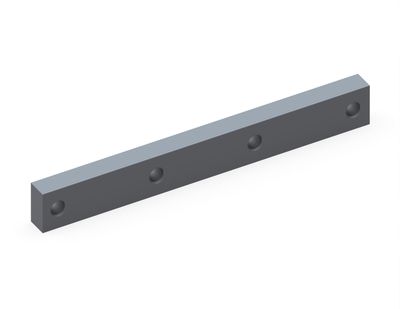

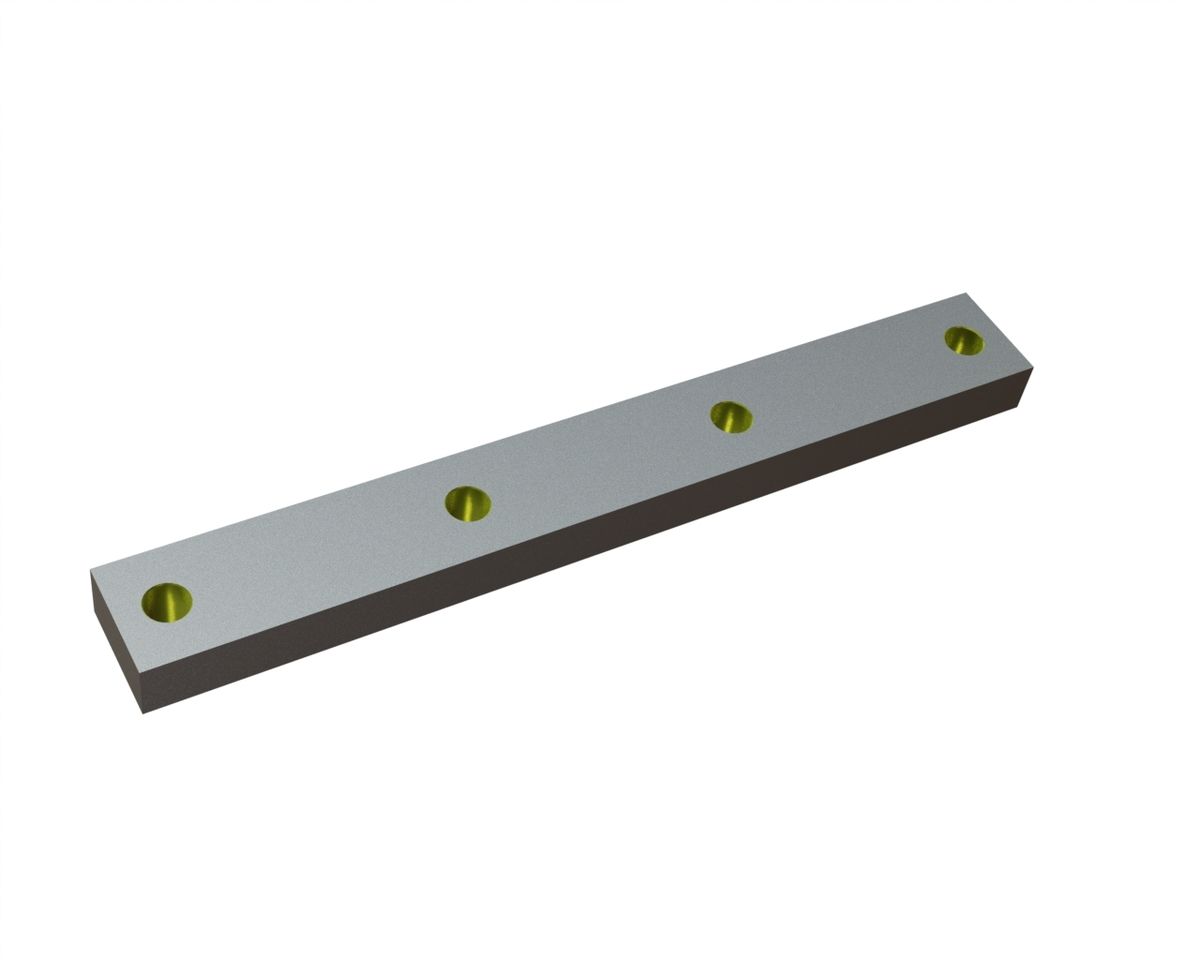

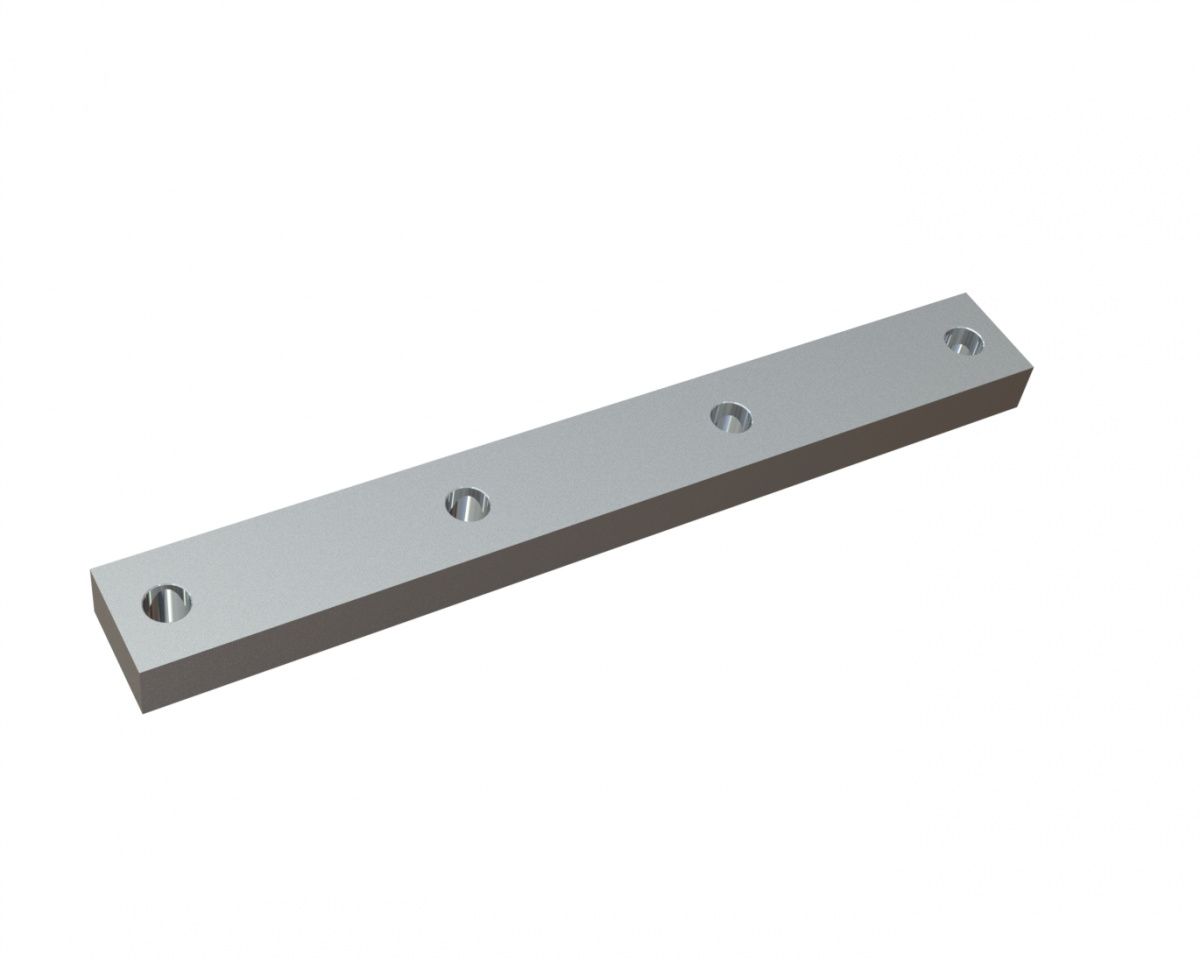

Rotorknife 399x50x25 Eco Line
Rotor knife RMED0399-900-E by CUTMETALL for crushing machines by Eldan Recycling.
Compatibility with machines:
The rotor knife can be used for Eldan HG and Eldan HG 169 model series from the Eldan Recycling company.
Cutting performance and durability:
This spare part can be matched to the operational scenario, depending on the various materials and the variance in shape.
Comparatively, the W9-variation wears more rapidly than the X-variant due to its lower hardness. Also the insensitivity to impurities and the high toughness of the W9-option is a notable feature compared to the X-version.
In this version, the products are hardened from the edge layer to the core. This means that the rotor knife wears consistently over its lifespan.
We emphasise that this option should not be armoured or welded on. This has a negative impact on the material structure of the rotor knife, which can subsequently lead to breakage and machine damage.
General characteristics:
The rotor knife is 399mm long, 50mm wide and 25mm high.
As the rotor knife is part of our Eco Line, this component is a cost-efficient alternative to the Premium Line.
| production line | Eco Line = CUTMETALL foreign production |
| suitable to manufacturer | |
| suitable to machine | Eldan HG 169, Eldan HG, Eldan HG 129, Eldan HG 209, Eldan HG, Eldan HG 129, Eldan HG 209 |
| knife features | higher wear / higher toughness |
| article group | rotor knife | fly knife | flying knife |
| Länge | 399 |
| width | 50 |
| height | 25 |
| weight in kg | 3.73 |
| material | hardness | AISI D2 | DIN 1.2379 | 54-56 HRC, AISI H13 | DIN 1.2344 | 54-56 HRC, AISI H13 | DIN 1.2344 | 54-56 HRC |
