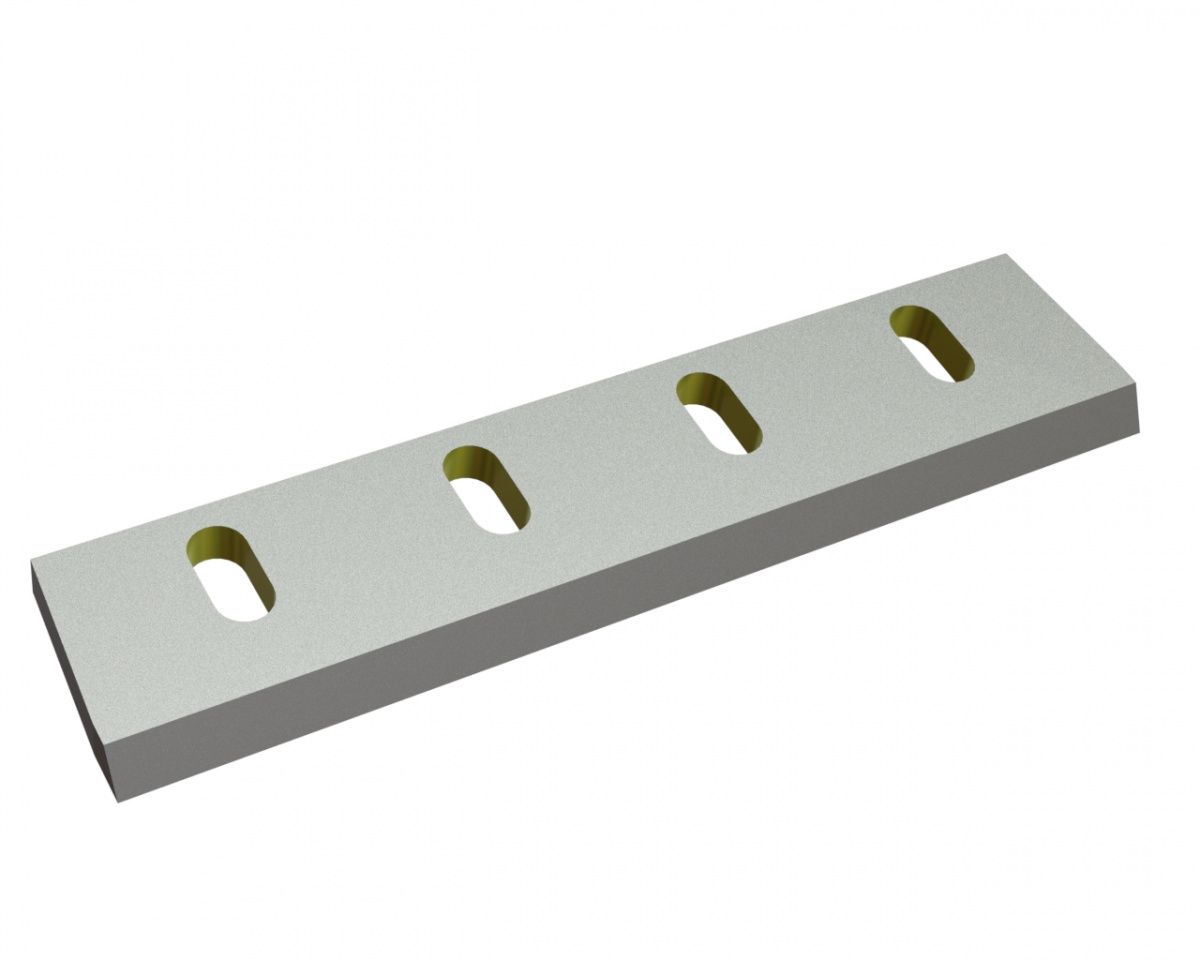

Rotor knife 475x103x20 Eco Line
Rotor knife RMED0475-X00-E by CUTMETALL for recycling machines by Eldan Recycling.
Cutting performance and durability:
The wear and tear behaviour and thus also the knife life can be impacted by the material and the cutting shape. This means that the performance can be well configured to the input material.
This rotor knife is made of tool steel and is thus assigned to our X-variant, which is the standard version in most break down applications.
Here you are offered a good compromise between insensitivity to wear and toughness.
Items of this option are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is even in relation to its life span.
It is imperative to avoid the welding on or hardfacing of items of this variation, as the structure will otherwise be fundamentally impaired. Therefore, breakage and machine damage may occur.
General characteristics:
The following measurements are available: 475mm length, 103mm width, 20mm height.
Its cutting edge is inclined at 57,5°.
As part of our Eco Line, the rotor knife offers a lower-priced alternative to the Premium Line.
| production line | Eco Line = CUTMETALL foreign production |
| suitable to manufacturer | |
| suitable to machine | Eldan FG 1500, Eldan FG 1502, Eldan FG 476, Eldan FG 952, Eldan FG | Fine Granulator, Eldan FG 950, Eldan FG 1504, Eldan FG 1502, Eldan FG 476, Eldan FG 952, Eldan FG | Fine Granulator, Eldan FG 950, Eldan FG 1504 |
| knife features | medium wear / medium toughness |
| article group | rotor knife | fly knife | flying knife |
| Länge | 475 |
| width | 103 |
| height | 20 |
| weight in kg | 6.34 |
| material | hardness | Cr12MoV | 57-59 HRC |
