Knife 100x100x48 Eco Line

Knife HMWM0100-W00-E by CUTMETALL for shredding machines by Weima Maschinenbau GmbH.



Compatibility with machines:

This cutting tool is excellently applicable for crushers, shredders, pre-shredders, and post-shredders from Weima Maschinenbau GmbH.



Cutting performance and durability:

Through the use of various materials and the variance in the cutting shape, the component can be adjusted to the break down application in terms of throughput and durability.

The W-version is made of alloy tool steel. In contrast to the X-variation, it has a shorter service life due to the 5 % lower hardness. However it is also less fragile in parallel. Knives of the W-variant are fitting for utilizations where the contact surface is no longer flat or there are impurities in the input material.

Components of this variant are hardened throughout, which means that this hardness remains the same from the edge to the core. Due to that the wear is even in relation to its life span.

Hardfacing or welding on this option should be avoided, as the structure will otherwise be severely weakened. This can lead to breakages and machine damage.



Fastening in the machine:

The knife has a drilling for attaching to M30 threads.

The item is suitable for knives and also cutting crowns with the length and width of 100mm. With regard to the diverse range of models, other configuration options can be realised.

It is imperative that the knife is only affixed to knife holders or knife crossbars with ideal supports, as otherwise the attachment may cause breakage.



General characteristics:

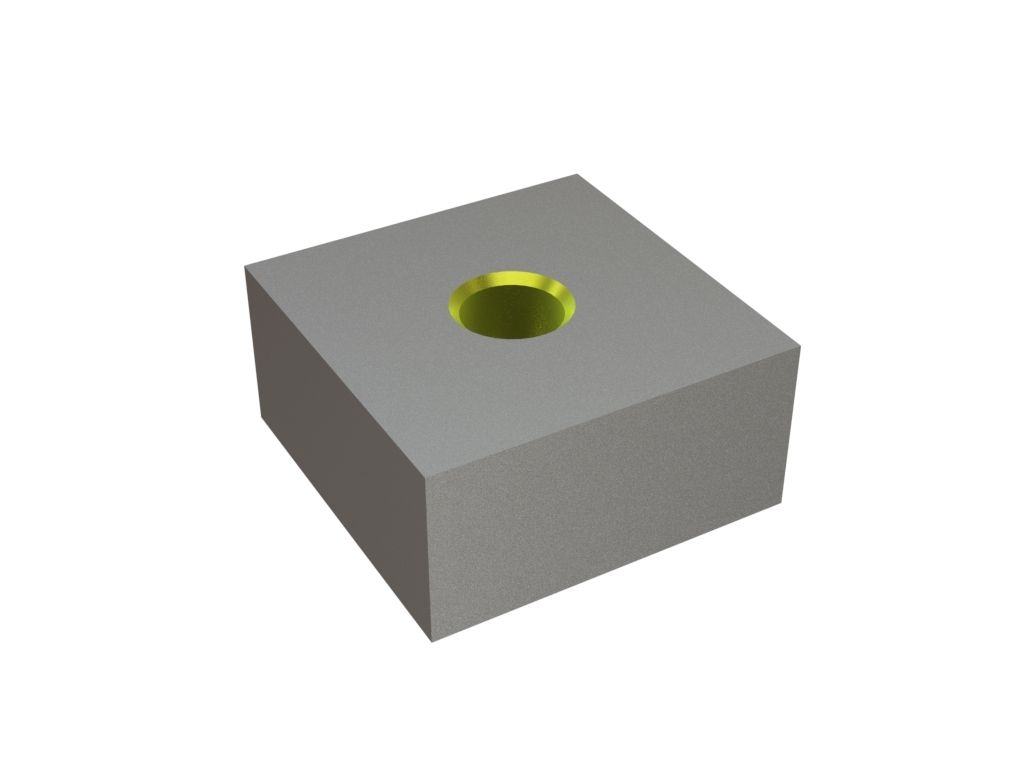

The measurements of this spare part are 100mm in length, 100mm in width and 48mm in height.

As this knife is part of our Eco Line, this product is a cost-effective alternative to the Premium Line.
