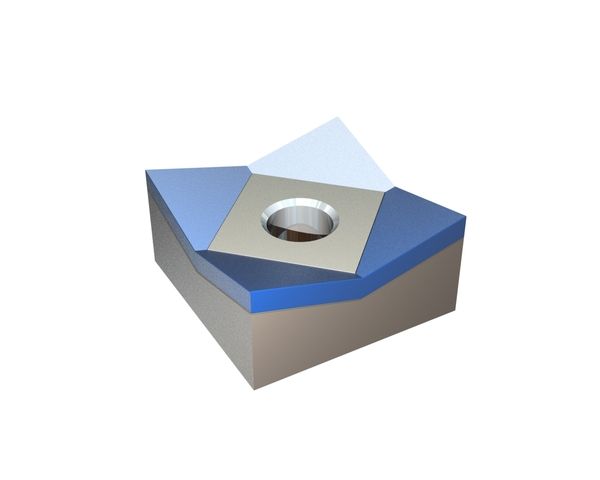

Cutting Crown 60x60x30 Hybrid Line edge 20°, M20, Carb-Qual = H4
Cutting crown HMVP0060-H4J34 by CUTMETALL for recycling machines by Vecoplan.
Compatibility with machines:
For crushers, shredders, pre-shredders and post-shredders by the company Vecoplan the cutting crown is excellently applicable.
Cutting performance and durability:
The performance of this item depends chiefly on the variation of the material and cutting geometry.
In the H-variant, this spare part is equipped with additional carbide cutting edges. This allows a significantly increased service life in the machine, while power consumption, dust generation and the risk of breakage are noticeably reduced.
Fastening in the machine:
To allow the cutting crown to be installed, it has a drilling for M20 threads.
When fitting the cutting crown, please assure that it is only fitted to knife holders or knife crossbars with an ideal contact surface in order to prevent breakage.
General characteristics:
The measures of the cutting crown are 60mm long, 60mm wide and 30mm high.
Principally as the cutting crown belongs to the Carbide Line, the cutting tool is provided with carbide cutting edges.
| production line | Cutmetall Plus = carbide edge knives Made in Germany |
| suitable to manufacturer | Vecoplan |
| article group | knives | knife | blade, concave cutter I cutting crowns | concave shredder | crown cutter |
| width | 60 |
| height | 30 |
| weight in kg | 0.69 |
