Cutting Crown 40x40x20 Hybrid Line edge 25°, M12, Carb-Qual = H4

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: HMVP0040-H4J24
Delivery time on request
Detailed description

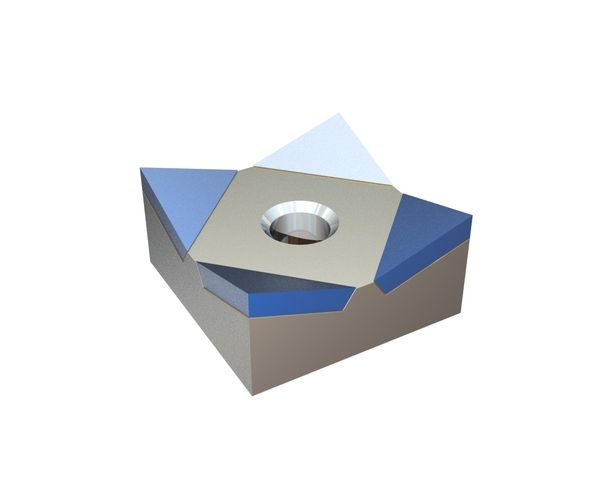

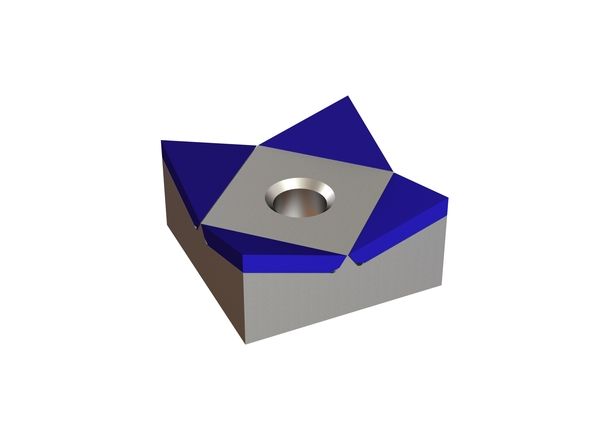

Cutting crown HMVP0040-H4J24 by CUTMETALL for shredding machines by Vecoplan.



Cutting performance and durability:

Through the use of particular materials and the variance in the cutting shape, the item can be adjusted to the area of application in terms of throughput and durability.

The H-option with carbide cutting edges makes it possible to significantly extend the tool life and at the same time reduce power consumption, dust generation and the risk of breakage.



Fastening in the machine:

To fasten the cutting crown, the spare to be adapted has a drilling for M12 threads.

When installing the cutting crown, please assure that it is only fitted to knife holders or knife crossbars with an intact contact surface in order to prevent breakage.



General characteristics:

The dimensions of the component are 40mm in length, 40mm in width and 20mm in height.

As this cutting crown is part of the Carbide Line, the product is featured with carbide cutting edges.



Field of application:

In addition to a wide range of application scenarios, the cutting crown can be used for the following input materials:

  • Subsitute fuels
  • Commercial & industrial waste
  • Domestic waste
  • Foils
  • Plastic
  • Files & data carriers
  • Paper
  • Spitting materials



You would like to have a personal contact to clarify further questions about the application area? Feel free to contact us at any time! Your CUTMETALL team will be happy to support you in finding the optimum cutting tool to meet your needs.

Technical specifications
production line Cutmetall Plus = carbide edge knives Made in Germany
suitable to manufacturer Vecoplan
suitable to machine Vecoplan VAZ 1300, Vecoplan VDS, Vecoplan VAZ 1800, Lindner Antares, Lindner Apollo, Lindner Micromat, Lindner Vega, Vecoplan VAZ, Vecoplan VAZ 1100, Vecoplan VAZ 1600, Vecoplan VAZ 2000, Vecoplan VAZ 2400, Vecoplan VAZ 2500, Vecoplan VAZ 800, Vecoplan VAZ (kleine Baureihe), Vecoplan VAZ (mittlere Baureihe), Vecoplan V-ECO 1700, Lindner Apollo 1000, Lindner Antares 1600, Vecoplan VAZ 160/200, Vecoplan VAZ 120/105, Vecoplan VAZ 200/160, Lindner Vega 1650, Vecoplan VAZ 1300 XL (New Generation), Vecoplan VAZ 100/80, Vecoplan VAZ 1600 (New Generation), Vecoplan VAZ 1600 XL, Vecoplan VDS 800, Vecoplan VAZ 145/135, Vecoplan VAZ 200/200, Vecoplan VAZ 220/200, Lindner Antares 1300, Lindner Apollo 1600, Lindner Apollo 700, Vecoplan VAZ 1300 XL, Vecoplan V-ECO 1300, Vecoplan VAZ 800 XL, Vecoplan V-ECO 900, Lindner Antares 1900, Vecoplan VDS, Vecoplan VAZ 1800, Lindner Antares, Lindner Apollo, Lindner Micromat, Lindner Vega, Vecoplan VAZ, Vecoplan VAZ 1100, Vecoplan VAZ 1600, Vecoplan VAZ 2000, Vecoplan VAZ 2400, Vecoplan VAZ 2500, Vecoplan VAZ 800, Vecoplan VAZ (kleine Baureihe), Vecoplan VAZ (mittlere Baureihe), Vecoplan V-ECO 1700, Lindner Apollo 1000, Lindner Antares 1600, Vecoplan VAZ 160/200, Vecoplan VAZ 120/105, Vecoplan VAZ 200/160, Lindner Vega 1650, Vecoplan VAZ 1300 XL (New Generation), Vecoplan VAZ 100/80, Vecoplan VAZ 1600 (New Generation), Vecoplan VAZ 1600 XL, Vecoplan VDS 800, Vecoplan VAZ 145/135, Vecoplan VAZ 200/200, Vecoplan VAZ 220/200, Lindner Antares 1300, Lindner Apollo 1600, Lindner Apollo 700, Vecoplan VAZ 1300 XL, Vecoplan V-ECO 1300, Vecoplan VAZ 800 XL, Vecoplan V-ECO 900, Lindner Antares 1900
article group knives | knife | blade, concave cutter I cutting crowns | concave shredder | crown cutter, concave cutter I cutting crowns | concave shredder | crown cutter
width 40
height 20
weight in kg 0.19
Hersteller Vecoplan
