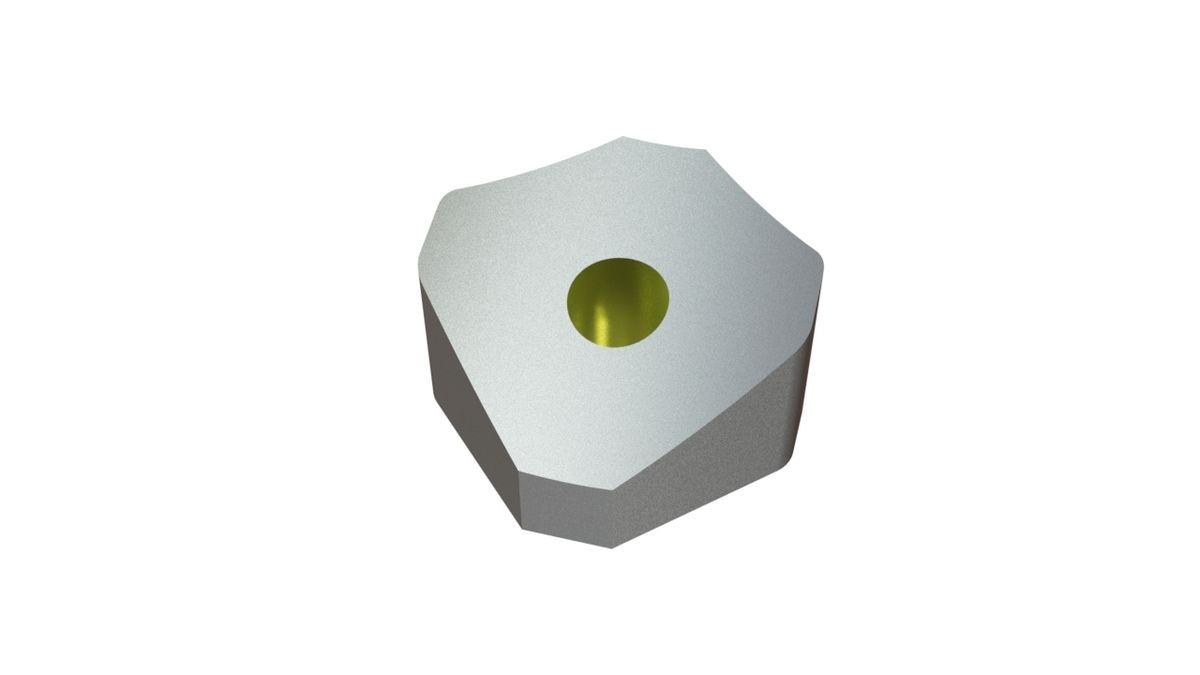

cutting crown 34x34x24 with hollow groove Eco Line
Cutter HMUT0034-X00-E by CUTMETALL for crushing machines by Untha.
Compatibility with machines:
For crushers, shredders, pre-shredders and post-shredders by the manufacturer Untha the cutter is perfectly fitting.
Cutting performance and durability:
The performance of this cutting tool depends primarily on the version of the material and shape.
In the X-option, the cutter is made of tool steel, which is our standard variant in most applications. It is characterised by a medium hardness.
Here we offer you a perfect combination of resistance to wear and toughness at the same time.
Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures persistent wear over the lifetime of the cutter.
Hardfacing or welding on this variation should be avoided, as the structure will otherwise be significantly weakened. This can lead to breakages and machine damage.
Fastening in the machine:
The cutter has a drilling for installing to M12 threads.
When attaching the cutter, please ensure that it is only attached to knife holders or knife crossbars with an ideal contact surface, as otherwise breakage may occur.
General characteristics:
This item measures 34mm in length, 34mm in width and 23.74mm in height.
This Eco Line cutter is reliable, can get the job done and is also price-competitive in comparison to our Premium Line.
| production line | Eco Line = CUTMETALL foreign production |
| suitable to manufacturer | Untha |
| suitable to machine | Untha LR, Untha LRK, Untha LR 1000, Untha LRK 1000, Untha LR 1400, Untha LRK 1400, Untha QR 1400, Untha LR 520, Untha LR 630, Untha LR 700, Untha LRK, Untha LR 1000, Untha LRK 1000, Untha LR 1400, Untha LRK 1400, Untha QR 1400, Untha LR 520, Untha LR 630, Untha LR 700 |
| knife features | medium wear / medium toughness |
| article group | knives | knife | blade, concave cutter I cutting crowns | concave shredder | crown cutter, concave cutter I cutting crowns | concave shredder | crown cutter |
| length | 34 |
| width | 34 |
| height | 23 |
| weight in kg | 0.13 |
| material | hardness | Cr12MoV | 57-59 HRC |
