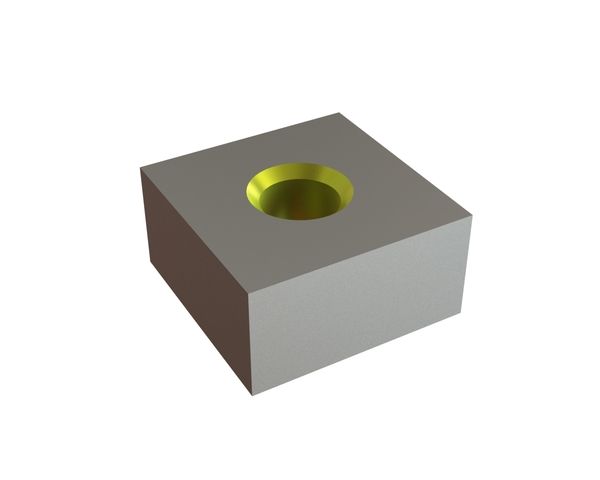

Cutting crown 30x30x15, Eco Line, M12 thread

Cutter HMGR0030-X00F0-E from CUTMETALL for shredding machines from GROSS Apparatebau GmbH



Compatibility with machines:

This item is excellently applicable for crushers, shredders, pre-shredders, and post-shredders from GROSS Apparatebau GmbH.



Cutting performance and durability:

The wear behaviour and thus also the longevity can be impacted by the material and the cutting geometry. This means that the efficiency can be well adjusted to the application scenario.

This X-variation cutter is made of tool steel and corresponds to the standard variant in most areas of application. Consequently, it has a medium hardness.

This combines both toughness and wear resistance in a balanced ratio.

Cutting tools of this version are hardened throughout, which means that this hardness remains persistent from the edge to the core. Due to that the wear is even in relation to its life cycle.

We underline that this option should not be armoured or welded on. This has a negative effect on the material structure of the cutter, which can subsequently lead to breakage and machine damage.



Fastening in the machine:

The cutter has a drilling for installing to M12 threads.

When attaching the cutter, please ensure that it is only attached to knife holders or knife crossbars with an intact contact surface, as otherwise breakage may occur.



General characteristics:

This cutter is 30mm long, 30mm wide and 15mm high.

As the cutter is part of our Eco Line, this spare part is a cost-efficient alternative to the Premium Line.
