Cutter aggressiv 110x110x65/45 Premium Line M24 threads, W-version for Vecoplan Vecoplan VVZ
Cutter aggressiv 110x110x65/45 Premium Line M24 threads, W-version for Vecoplan Vecoplan VVZ

Cutter aggressiv 110x110x65/45 Premium Line M24 threads, W-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: HMVP0110-W07
Delivery time on request
Detailed description

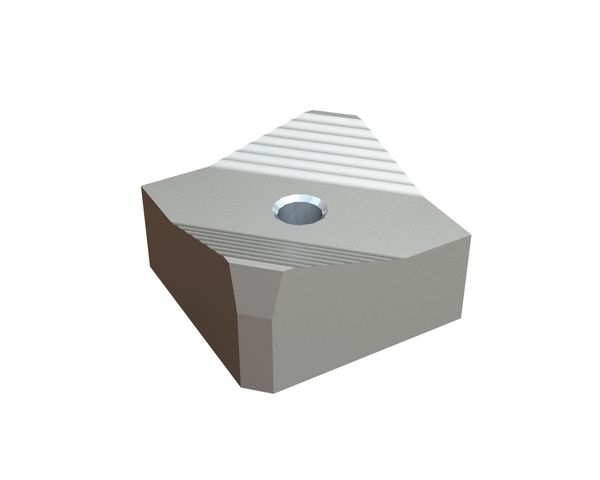

Cutter HMVP0110-W07 by CUTMETALL for crushing machines by Vecoplan.



Compatibility with machines:

The cutter is ideally applicable for crushers, shredders, pre-shredders and post-shredders from Vecoplan.



Cutting performance and durability:

The wear and tear behaviour and thus also the lifetime of the product can be influenced by the material and the shape. This means that the performance can be well adjusted to the input material.

Cutters in this W-variation are 5% softer in comparison to the X-option and have a lower susceptibility to impurities. This part is produced out of alloyed tool steel, which makes it suitable for demanding areas of applications. However this variant has a shorter operating time.

Due to the through-hardening process, there is a consistent hardness from the edge layer to the core. This ensures uniform wear over the lifetime of the cutter.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will seriously weaken the structure.



Fastening in the machine:

The component has a drilling for attaching to M24 threads.

It is imperative that the cutter is only affixed to knife holders or knife crossbars with intact supports, as otherwise the attachment may cause breakage.



General characteristics:

This spare part measures 110mm in length, 110mm in width and 65mm in height.

As this cutter belongs to our Premium Line, the item shown comes exclusively from German production.



Field of application:

Along with a wide variety of applications, the cutter optimally recycles the following input:

  • Substitute fuels
  • Commercial & industrial waste
  • Waste wood
  • Bulky waste
  • Straw
  • Root wood



If you have any further questions about the exact application scenario, feel free to contact us now to get a personal consulting! Our CUTMETALL team will help you finding the optimum solution for your specific needs.

Technical specifications
production line Premium Line = knives Made in Germany
suitable to manufacturer Vecoplan
suitable to machine Vecoplan VVZ, Vecoplan VVZ 250 Hurricane, Vecoplan VVZ 210 Hurricane, Vecoplan VVZ 190 Taifun
knife features slightly increased wear / increased toughness
article group knives | knife | blade, concave cutter I cutting crowns | concave shredder | crown cutter
width 110
height 65
weight in kg 4.8
material | hardness AISI D2 | DIN 1.2379 | 54-56 HRC
