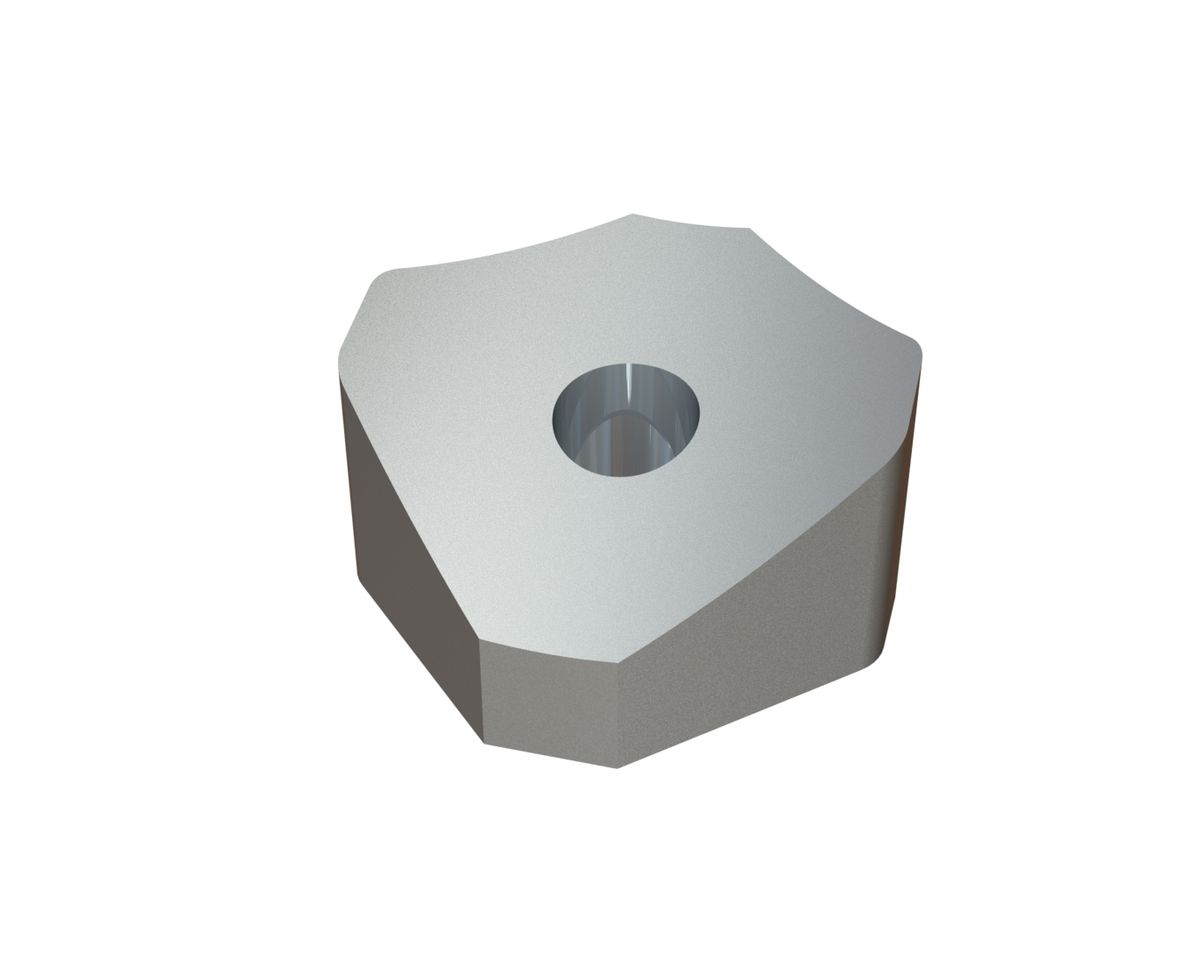

Cutter 34x34x24 with concave flute Premium Line
Cutter HMUT0034-X00 by CUTMETALL for recycling machines by Untha.
Compatibility with machines:
The cutter can be used with the crusher, the shredder, the pre-shredder and the post-shredder of the Untha brand.
Cutting performance and durability:
The performance of this cutting tool depends primarily on the variation of the material and shape.
In the X-version, the cutter is made of tool steel, which is our standard option in most applications. It is characterised by a medium hardness.
Here we offer you an applicable combination of insensitivity to wear and toughness at the same time.
Due to the through-hardening process, there is a uniform hardness from the edge layer to the core. This ensures homogenous wear over the service life of the cutter.
We underline that this variant should not be armoured or welded on. This has a negative impact on the material structure of the cutter, which can subsequently lead to breakage and machine damage.
Fastening in the machine:
To install the cutter, the product to be adapted has a drilling for M12 threads.
When attaching the cutter, please assure that it is only attached to knife holders or knife crossbars with an ideal contact surface, as otherwise breakage may occur.
General characteristics:
The dimensions of the cutter are 34mm long, 34mm wide and 23.74mm high.
This cutter belongs to the Premium Line, which is produced exclusively in Germany.
| production line | Premium Line = knives Made in Germany |
| suitable to manufacturer | Untha |
| suitable to machine | Untha LR, Untha LRK, Untha LR 1000, Untha LRK 1000, Untha LR 1400, Untha LRK 1400, Untha QR 1400, Untha LR 520, Untha LR 630, Untha LR 700, Untha LRK, Untha LR 1000, Untha LRK 1000, Untha LR 1400, Untha LRK 1400, Untha QR 1400, Untha LR 520, Untha LR 630, Untha LR 700 |
| knife features | medium wear / medium toughness |
| article group | knives | knife | blade, concave cutter I cutting crowns | concave shredder | crown cutter, concave cutter I cutting crowns | concave shredder | crown cutter |
| length | 34 |
| width | 34 |
| height | 23 |
| weight in kg | 0.13 |
| material | hardness | AISI D2 | DIN 1.2379 | 57-59 HRC |
