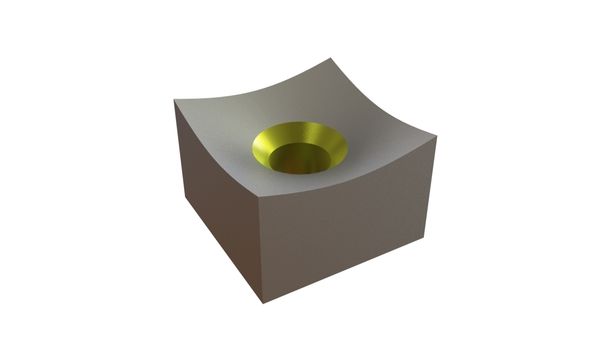

Cutter 30x30x20 Eco Line M12 thread, X-version

Cutter HMRE0030-XH0-E by CUTMETALL for crushing machines by Rudnick & Enners.



Compatibility with machines:

This cutter is applicable for crushers, shredders, pre-shredders and post-shredders from Rudnick & Enners.



Cutting performance and durability:

The item can be configured to the area of application, depending on the various materials and varying shape.

This X-variant cutter is made of tool steel and corresponds to the standard version in most application areas. Therefore, it has a medium hardness.

Here you are offered a balanced relationship between resistance to wear and toughness simultaneously.

Cutting tools of this variation are hardened throughout, which means that this hardness remains persistent from the edge to the core. Due to that the wear is even in relation to its tool life.

However, this option must not be armoured or welded on, as it negatively impacts the structure of the components. Subsequently, fractures and machine damage are possible.



Fastening in the machine:

To fasten the cutter, the component to be fixed has a drilling for M12 threads.

When attaching the cutter, please ensure that it is only attached to knife holders or knife crossbars with an undamaged contact surface, as otherwise breakage may occur.



General characteristics:

The subsequent dimensions are available: 30mm length, 30mm width, 20mm height.

Since the cutter is part of our Eco Line, the cutting tool offers a favourable alternative to the Premium Line.
