Counter knife middle 491x110x25 Eco Line version 37, W9-version for Untha Untha MR
Counter knife middle 491x110x25 Eco Line version 37, W9-version for Untha Untha MR

Counter knife middle 491x110x25 Eco Line version 37, W9-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: GMUT0491-901M-E
Delivery time on request
Detailed description

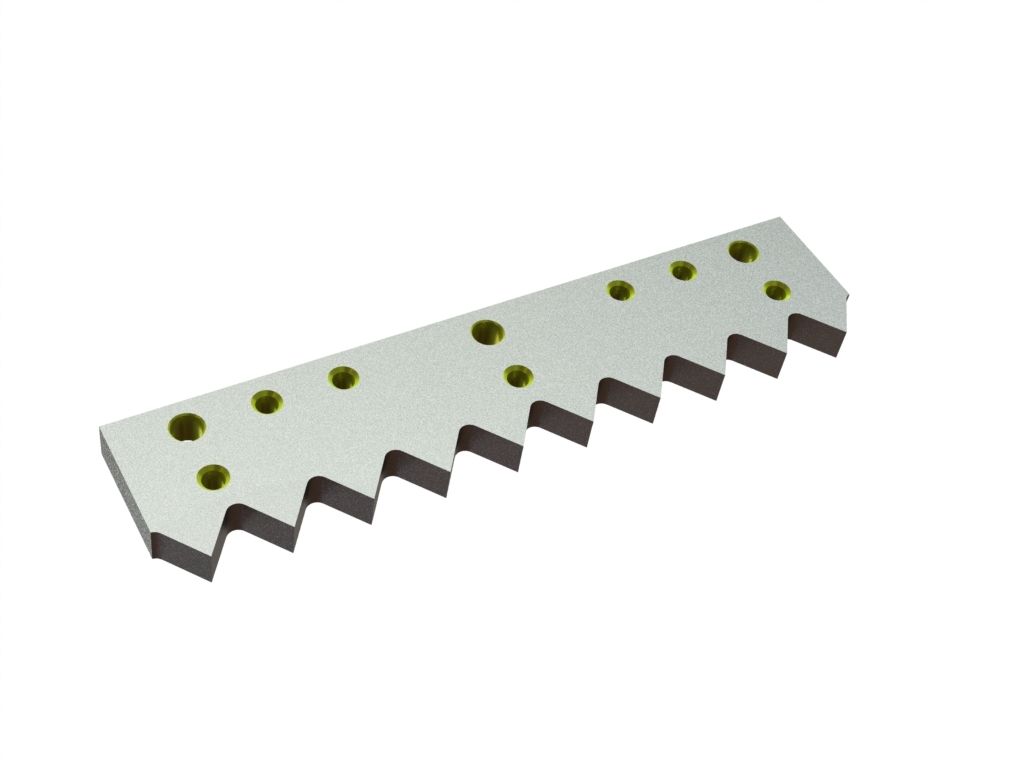

Counter knife GMUT0491-901M-E from CUTMETALL for crushing machines from Untha



Compatibility with machines:

The counter knife can be used for the crusher, the shredder, the pre-shredder and the post-shredder of the Untha company.



Cutting performance and durability:

Through the use of various materials and the variance in the cutting shape, the spare part can be adjusted to the application area in terms of throughput and knife life.

The W9-version wears more rapidly than the X-variation, but also has increased toughness and is insensitive to impurities. However, the hardness of the W9-option is lower than that of the X-variant.

Spare parts of this variant are hardened throughout, which means that this hardness remains the same from the edge to the core. Due to that the wear is even in relation to its tool life.

Hardfacing or welding on this version should be avoided, as the structure will otherwise be seriously weakened. This can lead to breakages and machine damage.



Fastening in the machine:

The counter knife is mounted centered on the cutting device. The other parts of this set can be found under the accessories.

This item fits knives and cutters with a length and width of 37mm. Due to the wide range of shredding models, other configuration variants may be available.

When attaching the counter knife, please assure that it is only fixed to knife holders or knife crossbars with a flat contact surface, as otherwise breakage may occur.



General characteristics:

This cutting tool measures 491mm in length, 110mm in width and 25mm in height.

This Eco Line counter knife is reliable, can get the job done and is also price-competitive in comparison to our Premium Line.

Technical specifications
production line Eco Line = CUTMETALL foreign production
suitable to manufacturer Untha
suitable to machine Untha MR, Untha MR 1500
knife features higher wear / higher toughness
article group counter knife | shredder bed knife
width 110
height 25
weight in kg 8.6
material | hardness AISI H13 | DIN 1.2344 | 54-56 HRC
