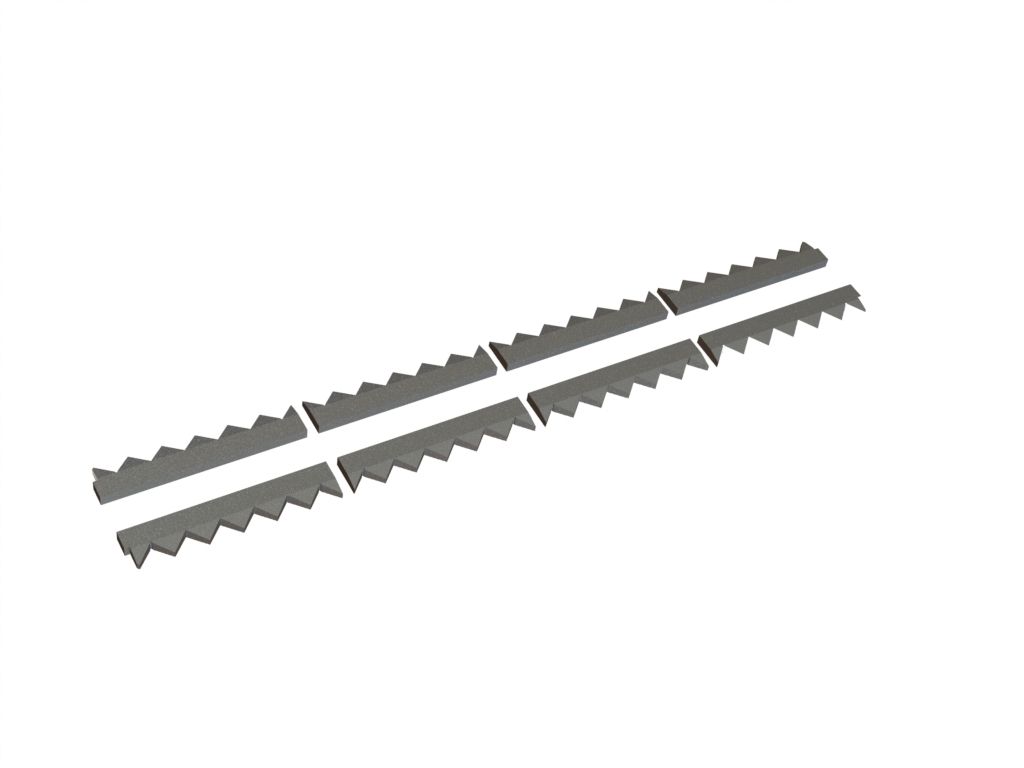

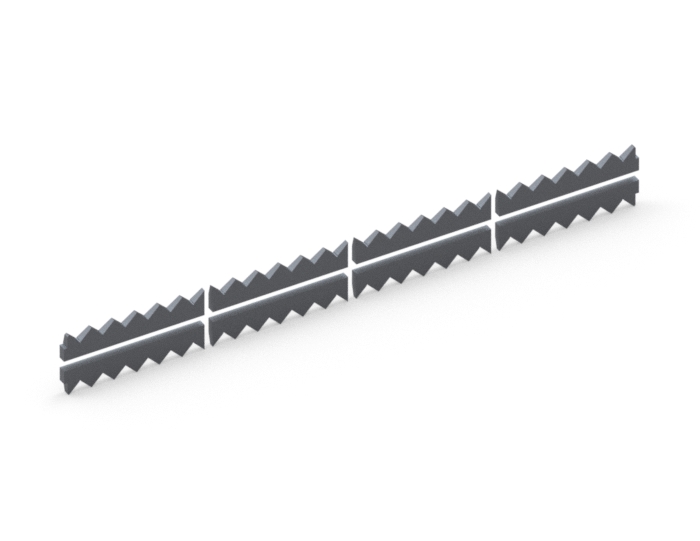

Counter knife 2x4-parts 2003x96x28 for Vecoplan Vecoplan VNZ 200 XL
Counter knife 2x4-parts 2003x96x28 for Vecoplan Vecoplan VNZ 200 XL

Counter knife 2x4-parts 2003x96x28

Version 80, X-version
CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.
Item number: GMVP4006-XVF0K
Delivery time on request
Detailed description

Counter knife GMVP4006-XVF0K by CUTMETALL for recycling machines by Vecoplan.



Compatibility with machines:

The counter knife is applicable for crushers, shredders, pre-shredders and post-shredders from Vecoplan.



Cutting performance and durability:

This product can be configured to the application area, depending on the particular materials and varying cutting geometry.

The X-option of this cutting tool is made of tool steel. This variant has a medium hardness and lays between the W- and Y-variations.

Here you are offered a beneficial compromise between resistance to wear and toughness.

Spare parts of this variation are hardened throughout, which means that this hardness remains the same from the edge to the core. Due to that the wear is even in relation to its tool life.

However, this version must not be armoured or welded on, as it negatively impacts the structure of the components. Consequently, fractures and machine damage are possible.



Fastening in the machine:

The counter knife can be combined with knives and cutting crowns with a length and width of 80mm. Due to the wide range of shredder models, other configuration options are possible.

It is imperative that the counter knife is only affixed to knife holders or knife crossbars with intact supports, as otherwise the attachment may cause breakage.



General characteristics:

The measurements of the counter knife are 4000mm long, 96mm wide and 28mm high.

As this counter knife belongs to the Premium Line, the spare parts presented is exclusively made in German manufacturing.

Technical specifications
suitable to manufacturer Vecoplan
suitable to machine Vecoplan VNZ 200 XL
knife features medium wear / medium toughness
article group counter knife | shredder bed knife
length 4
width 96
height 28
weight in kg 63.76
material | hardness AISI D2 | DIN 1.2379 | 57-59 HRC
