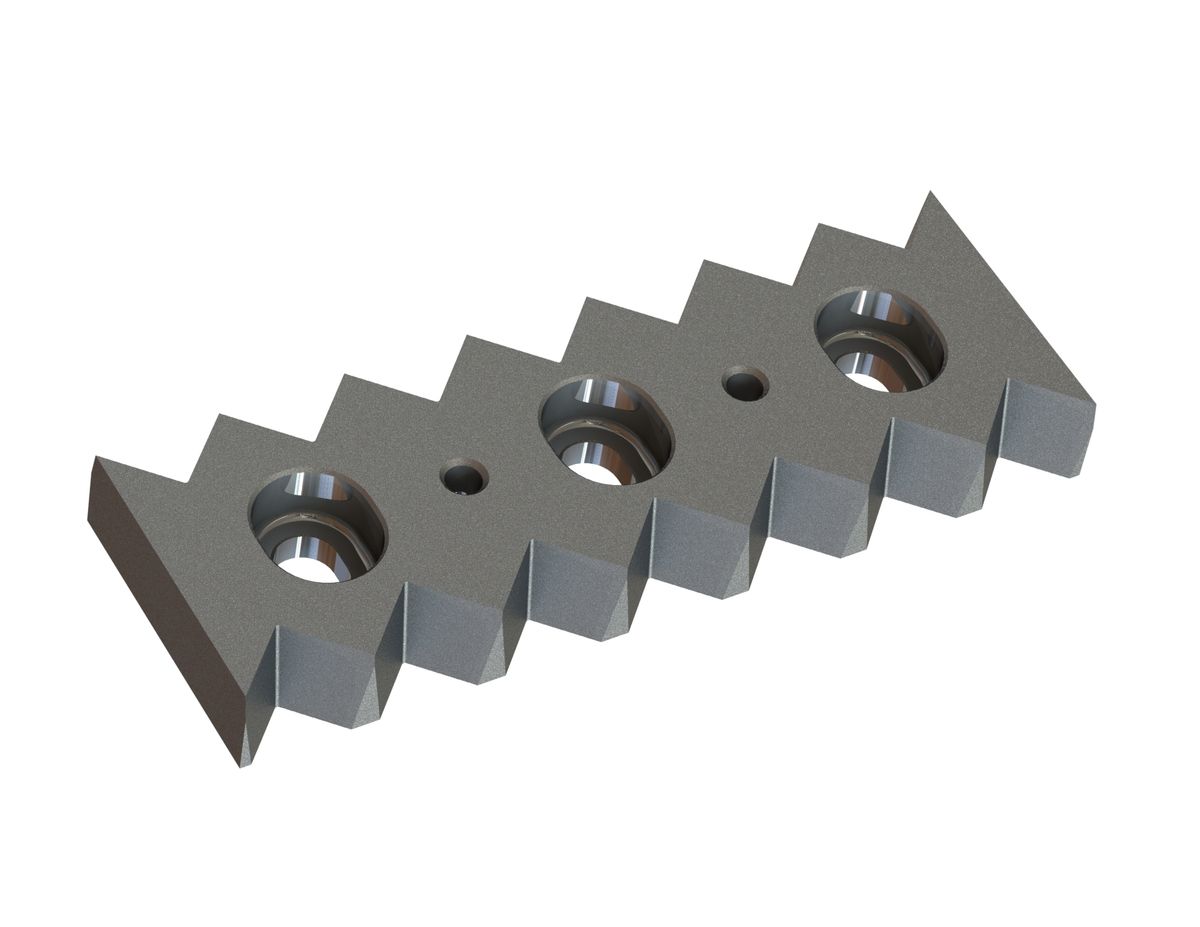

Counter knife 257x90x28 Premium Line
Counter knife GMVP0257-Y02 from CUTMETALL for shredding machines from Vecoplan
Compatibility with machines:
This counter knife can be used in the Vecoplan VAZ, Vecoplan VAZ 1300, and Vecoplan VAZ 1600 model ranges from Vecoplan.
Cutting performance and durability:
Through the use of various materials and the variance in the cutting geometry, the product can be configured to the break down application in terms of throughput and durability.
Knives made in this Y-option will increase the tool life of your spare part. Due to the hardness the susceptibility to impurities is higher, which makes it easier to break.
Due to the through-hardening process, there is a consistent hardness from the edge layer to the core. This ensures homogenous wear over the lifetime of the counter knife.
We highlight that this version should not be armoured or welded on. This has a negative effect on the material structure of the counter knife, which can subsequently lead to breakage and machine damage.
Fastening in the machine:
The component is suitable for knives and also cutting crowns with the length and width of 40mm. With regard to the diverse range of models, other configuration variations can be realised.
When attaching, please also assure that the support of the knives is in a flat condition, as otherwise breakage may occur.
General characteristics:
The counter knife is 257.3mm long, 90mm wide and 27.5mm high.
As part of the Premium Line, this counter knife is of German manufacturing.
| production line | Premium Line = knives Made in Germany |
| suitable to manufacturer | Vecoplan |
| suitable to machine | Vecoplan VAZ 1300, Vecoplan VAZ, Vecoplan VAZ 1600, Vecoplan VAZ 1300 XL (New Generation), Vecoplan VAZ 1600 (New Generation), Vecoplan VAZ, Vecoplan VAZ 1600, Vecoplan VAZ 1300 XL (New Generation), Vecoplan VAZ 1600 (New Generation) |
| knife features | lower wear / lower toughness |
| performance / version | performance 40 |
| article group | counter knife | shredder bed knife |
| length | 257 |
| width | 90 |
| height | 27 |
| weight in kg | 3.59 |
| material | hardness | AISI D2 | DIN 1.2379 | 60-62 HRC |
