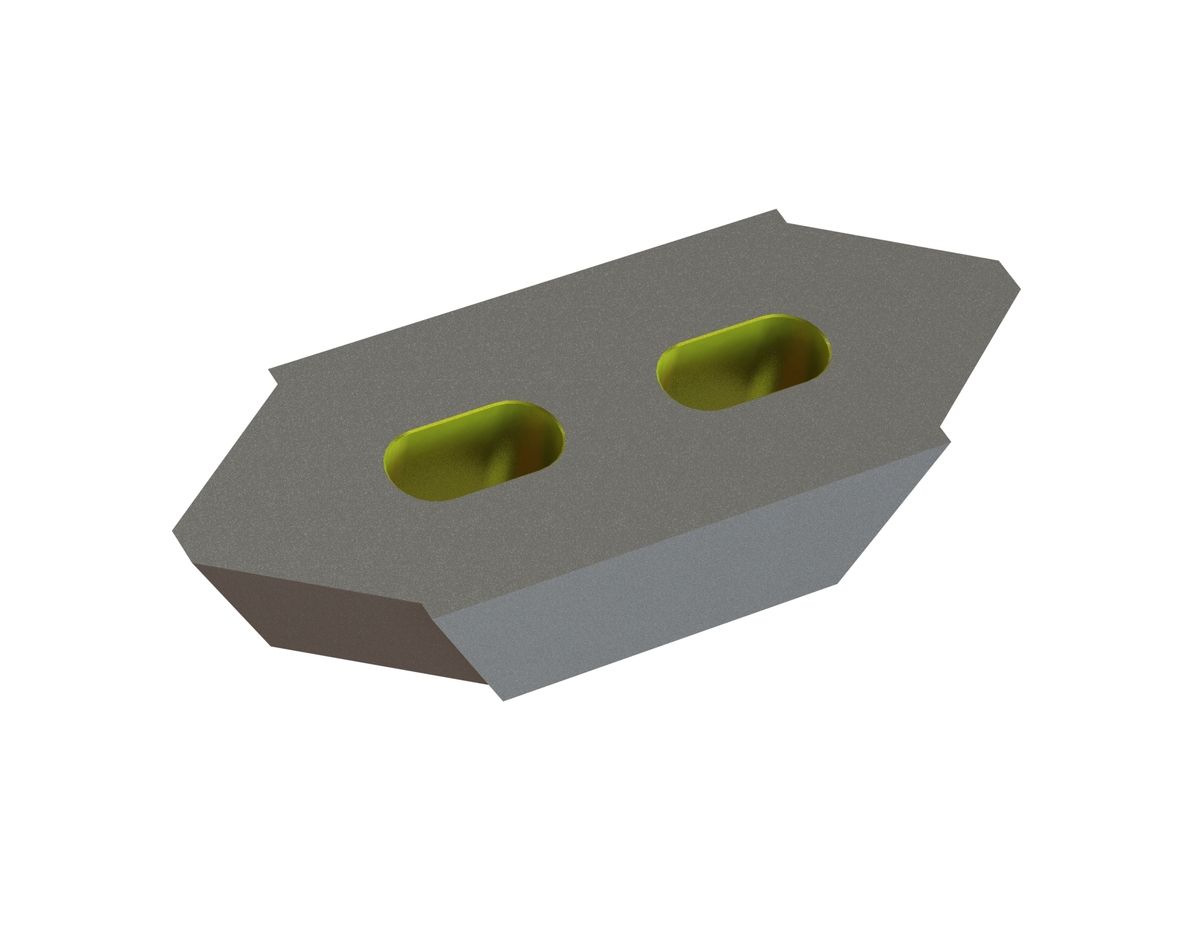

Counter knife 218x80x40 Eco Line
Counter knife GMED0218-930-E from CUTMETALL for recycling machines from Eldan Recycling
Cutting performance and durability:
Through the use of different materials and varying the cutting geometry, the product can be adjusted to the operational scenario in terms of throughput and lifetime.
By contrast, the W9-variation wears more rapidly than the X-version due to its lower hardness. Also the resistance to impurities and the high toughness of the W9-variant is a notable feature compared to the X-option.
Cutting tools of this variant are hardened throughout, which means that this hardness remains persistent from the edge to the core. Due to that the wear is homogenous in relation to its life span.
We underline that this variation should not be armoured or welded on. This has a negative effect on the material structure of the counter knife, which can subsequently lead to breakage and machine damage.
General characteristics:
This counter knife is 218mm long, 80mm wide and 40mm high.
As the counter knife is part of our Eco Line, this spare part is a cost-effective alternative to the Premium Line.
| production line | Eco Line = CUTMETALL foreign production |
| suitable to manufacturer | |
| suitable to machine | Eldan HR 162, Eldan MPR 200 HD, Eldan MPR 120, Eldan MPR 160, Eldan TR 160, Eldan MPR 200, Eldan HPG 165, Eldan HR | Heavy Rasper, Eldan HPG, Eldan MPR, Eldan HR 163 (Heavy Rasper), Eldan MPR 200 HD, Eldan MPR 120, Eldan MPR 160, Eldan TR 160, Eldan MPR 200, Eldan HPG 165, Eldan HR | Heavy Rasper, Eldan HPG, Eldan MPR, Eldan HR 163 (Heavy Rasper) |
| knife features | higher wear / higher toughness |
| article group | counter knife | shredder bed knife |
| length | 218 |
| width | 80 |
| height | 40 |
| weight in kg | 3.49 |
| material | hardness | AISI D2 | DIN 1.2379 | 54-56 HRC, AISI H13 | DIN 1.2344 | 54-56 HRC, AISI H13 | DIN 1.2344 | 54-56 HRC |
