Chipper knife 40x40x20 Hybrid Line edge 90°, M12, Carb-Qual = H4

Blade HMVP0040-H4J74 by CUTMETALL for crushing machines by Vecoplan.



Compatibility with machines:

The blade can be inserted for the crusher, the shredder, the pre-shredder and the post-shredder of the Vecoplan company.



Cutting performance and durability:

Through the use of various materials and varying the shape, the product can be configured to the break down application in terms of throughput and service life.

In the H-variation, this item is equipped with additional carbide cutting edges. This allows a clearly increased durability in the machine, while power consumption, dust generation and the risk of breakage are noticeably reduced.



Fastening in the machine:

For attaching, the blade has a drilling for M12 threads.

When fitting the blade, please ensure that it is only applied to knife holders or knife crossbars with an intact contact surface in order to prevent breakage.



General characteristics:

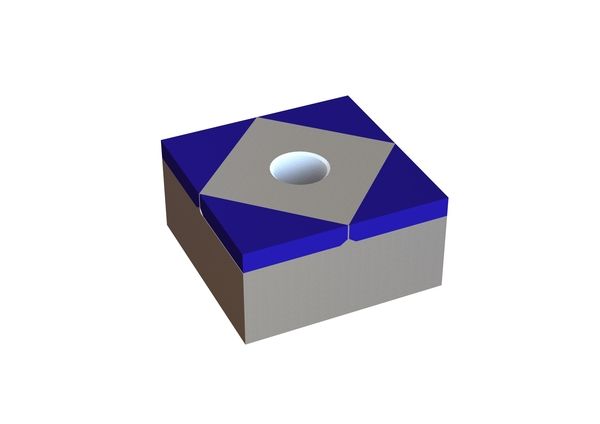

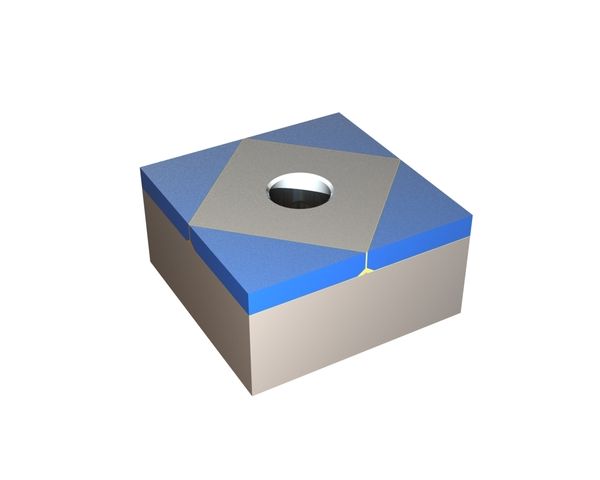

This blade is 40mm long, 40mm wide and 20mm high.

Its cutting edge is inclined at 90°.

As this cutting tool belongs to our Carbide Line, the particular feature of the blade are the carbide cutting edges.
