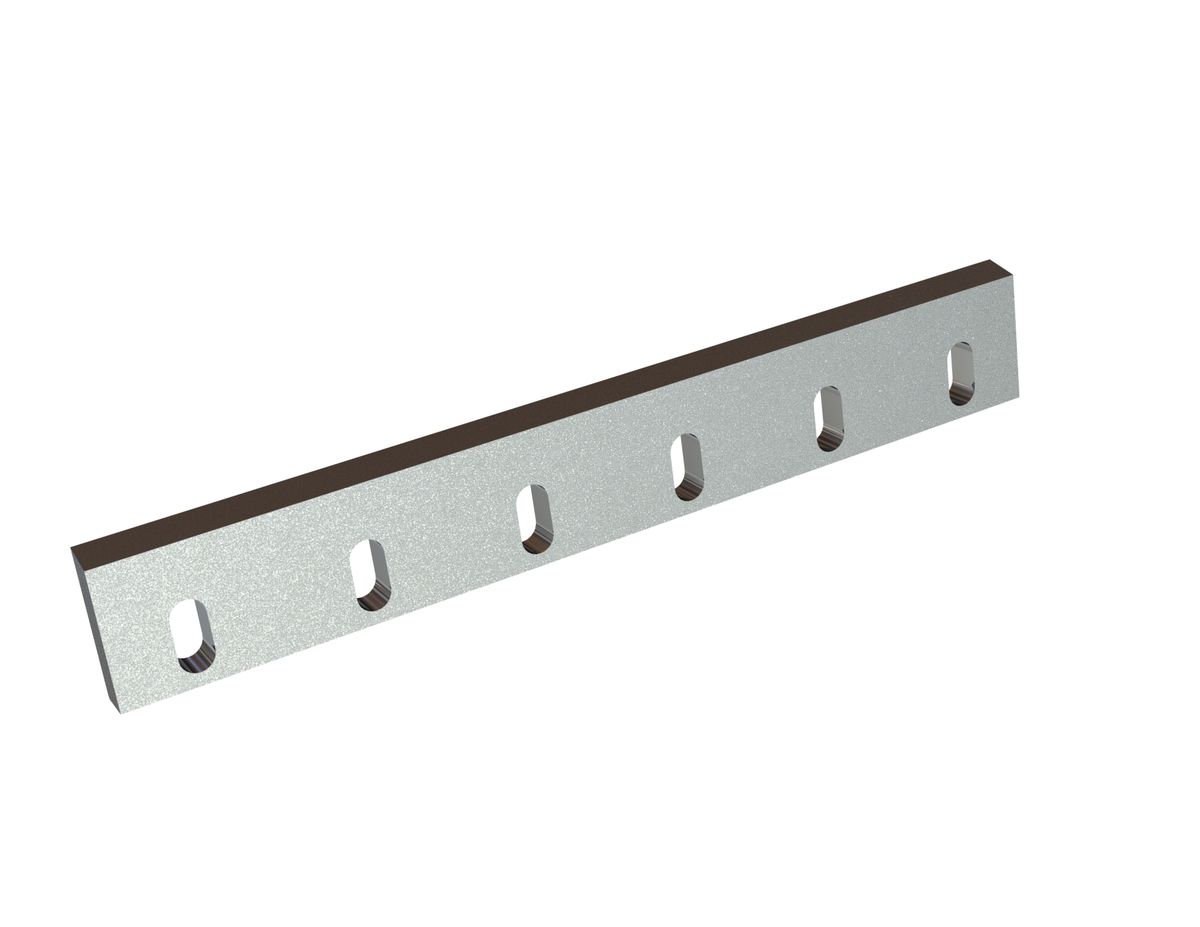

Stator knife 649x96x24 Premium Line

6 long slot, blade 75°, 22x46 thread, Y-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number: SMDR0648-Y04

Delivery time on request

Detailed description

Stator knife SMDR0648-Y04 from CUTMETALL for crushing machines from Dreher Maschinenbau

Compatibility with machines:

This stator knife is applicable for cutting millses and granulators from Dreher Maschinenbau.

Cutting performance and durability:

The spare part can be matched to the break down application, depending on the different materials and varying cutting shape.

The Y-variation of this component is made of alloyed tool steel. Comparatively to the X-variant, it is approx. 5 % harder and thus offers longer service life. At the same time, nonetheless, the susceptibility to impurities increases, which can lead to breakage more rapidly.

In this option, the items are hardened from the edge layer to the core. This means that the stator knife wears evenly over its lifespan.

To avoid breakage and machine damage, it is crucial not to armour or weld on this type, as it will seriously weaken the structure.

General characteristics:

This stator knife is 648.5mm long, 96mm wide and 24mm high.

The inclination of the cutting edge is 75°.

This stator knife belongs to the Premium Line, which is produced exclusively in Germany.

Technical specifications

production line	Premium Line = knives Made in Germany
suitable to manufacturer	Heinrich Dreher Maschinenbau
knife features	lower wear / lower toughness
article group	stator knife \| bed knife \| static knife
Länge	648
width	96
height	24
weight in kg	10.3
material \| hardness	AISI D2 \| DIN 1.2379 \| 60-62 HRC
