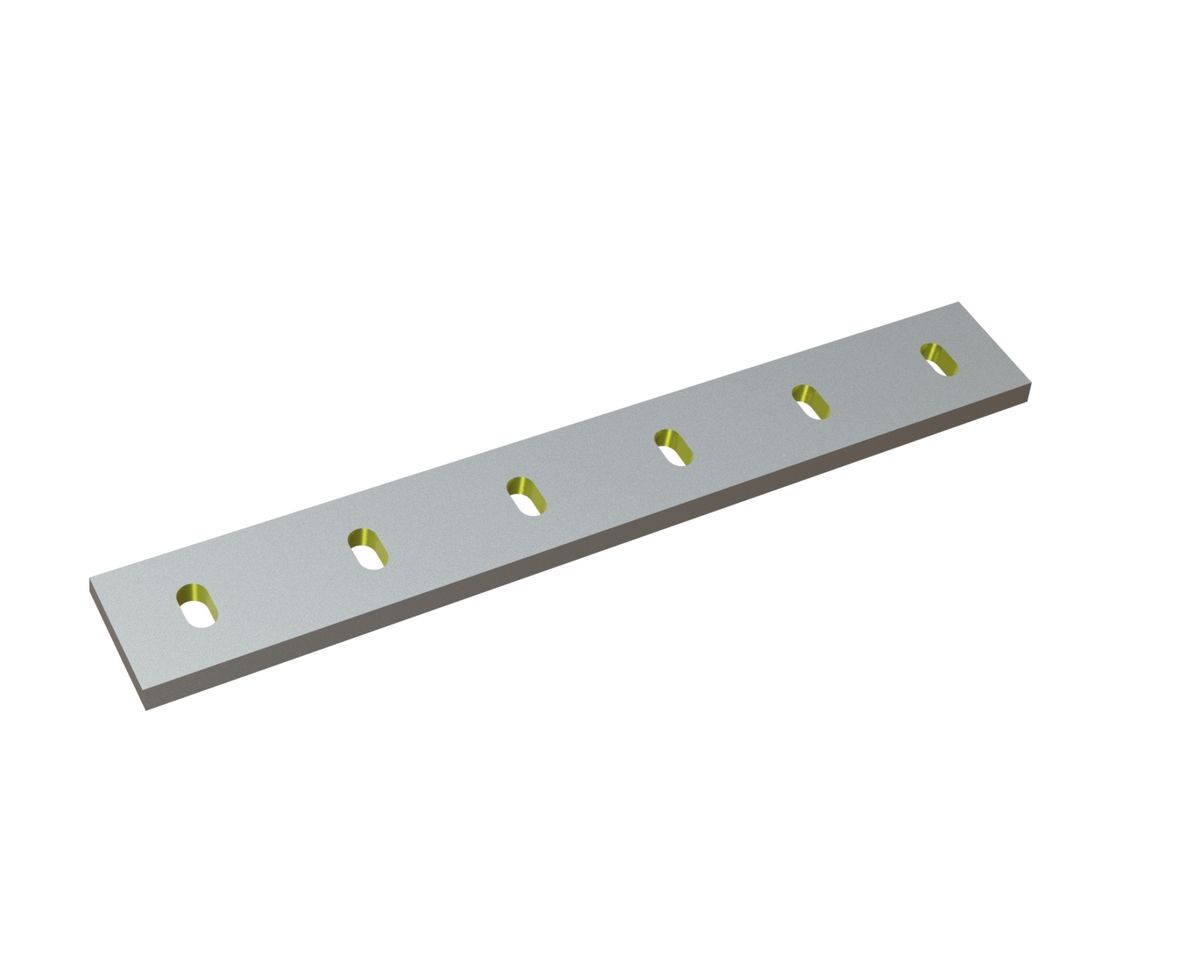

Stator knife 620x90x16 Eco Line

6 long slots, edge 80°, Y-version

CUTMETALL products: More than a spare part! Our spare and wear parts are not original spare parts by the machine manufacturer, but rather process-optimised CUTMETALL own brands: A perfect fit. Durable. Economical.

Item number: SMAP0620-Y00-E

Delivery time on request

Detailed description

Stator knife SMAP0620-Y00-E from CUTMETALL for recycling machines from Hosokawa Alpine AG

Compatibility with machines:

The stator knife is compatible with the Alpine 28/60 Ro model series by the producer Hosokawa Alpine AG.

Cutting performance and durability:

The performance of the spare part depends primarily on the version of the material and cutting shape.

Knives made in this Y-variation will increase the tool life of your component. Due to the hardness the susceptibility to impurities is higher, which makes it easier to break.

In this variant, the items are hardened from the edge layer to the core. This means that the stator knife wears homogenously over its lifespan.

It is imperative to avoid the welding on or hardfacing of spare parts of this option, as the structure will otherwise be severely impaired. Therefore, breakage and machine damage may occur.

General characteristics:

The subsequent measurements are available: 620mm length, 90mm width, 16mm height.

Its cutting edge is inclined at 80°.

This favourable variant in comparison to our Premium Line is part of the Eco Line.

Technical specifications

production line	Eco Line = CUTMETALL foreign production
suitable to manufacturer	Hosokawa Alpine AG
suitable to machine	Alpine 28/60 Ro
knife features	lower wear / lower toughness
article group	stator knife \| bed knife \| static knife
Länge	620
width	90
height	16
weight in kg	6.28
material \| hardness	Cr12MoV \| 60-62 HRC
