Statormesser 818x100x20 Premium Line 10 LL, Schneide 75°, Y-Variante

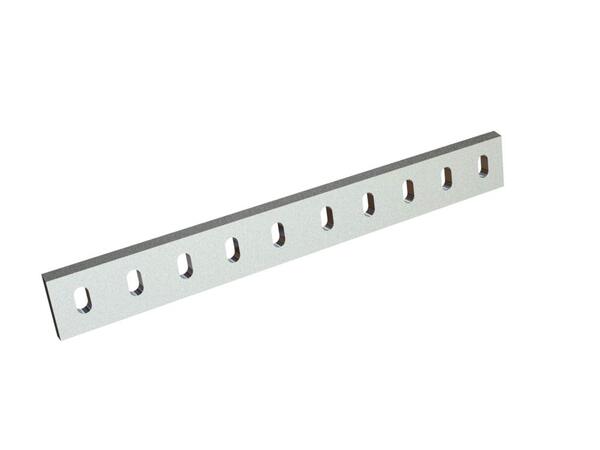

Stator knife SMHD0818-Y00 from CUTMETALL for recycling machines from Herbold Meckesheim



Compatibility with machines:

This stator knife can be installed in the cutting mills and the granulator of the Herbold Meckesheim brand.



Cutting performance and durability:

The cutting shape and the material used for constructing have a significant impact on the insensitivity and service life.

In the Y-version, this spare part is made of alloyed tool steel. The stator knife in this variation is approx. 5% harder than the X-option, which results in a longer operating time. Nonetheless, the texture is also more brittle. Due to that it can be more fragile if there is a high level of impurities.

Components of this variant are hardened throughout, which means that this hardness remains consistent from the edge to the core. Due to that the wear is homogenous in relation to its life span.

To avoid breakage and machine damage, it is important not to armour or weld on this type, as it will fundamentally weaken the structure.



General characteristics:

The stator knife is 818mm long, 100mm wide and 20mm high.

The inclination of the cutting edge is 75°.

This stator knife belongs to the Premium Line, which is produced exclusively in Germany.
